CX70/CR70 (MS-1755) Disassembly Guide
3、HDD MODULE

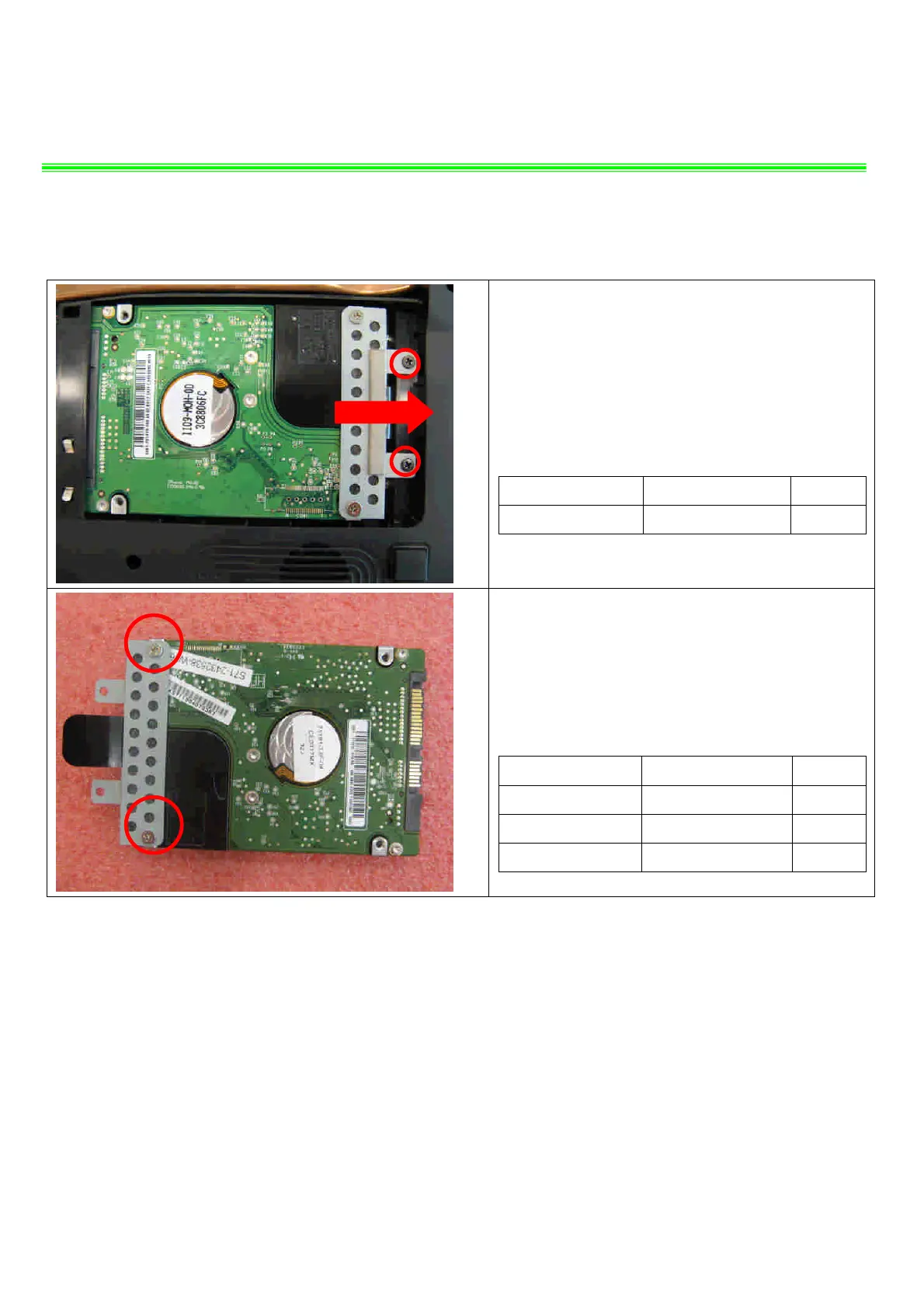

3.1: Remove the 2 screws (M2.5*5.5mm); then
remove the HDD Module according to the direction
as pic shows.
Attention: the screw driver torque is 2.0-2.5Kgf-cm
Component P/N Qty
Screw E43-1255501-H29 2
3.2: Remove the 2 screws (M3*4mm) that stabilize
the HDD bracket, then remove the HDD bracket.
Attention: the screw driver torque is 3.0-3.5Kgf-cm
Component P/N Qty
Screw E43-1304009-G68 2
HDD Bracket E2M-6G10811-A89 1
HDD Module S71-2450537-T14 1
