MSI H55M-E32 series Manual

En-2
MS-7636 Mainboard
English
MS-7636 Mainboard
English

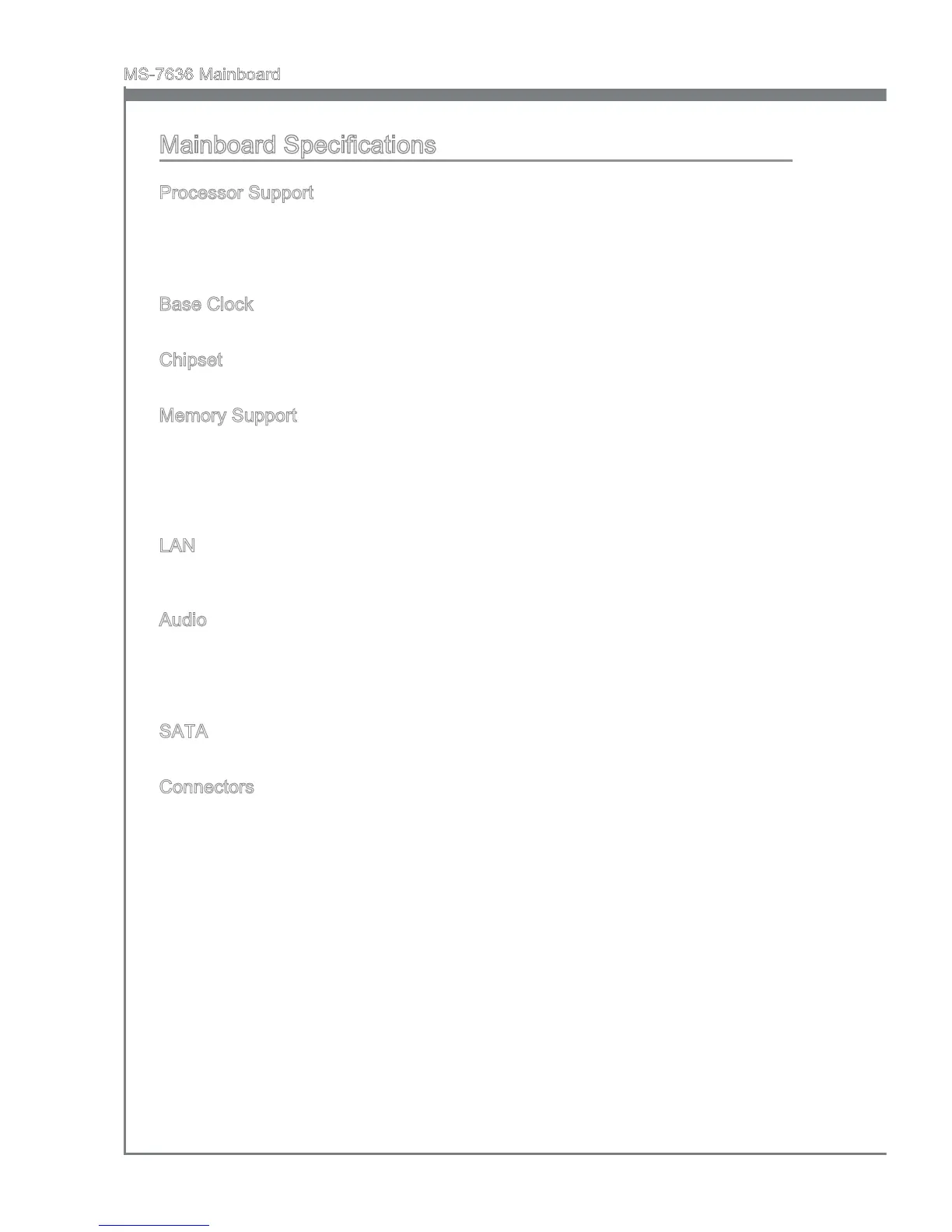

Mainboard Speci󰘰cations
Processor Support
Intel
®
Core™ i7, Core™ i5 (Lynn󰘰eld & Clarkdale), Core™ i3 and Pentium
®
processor
in the LGA1156 package
(For the latest information about CPU, please visit http://www.msi.com/index.
php?func=cpuform2)
Base Clock
133 MHz
Chipset
Intel
®
H55 chipset
Memory Support
2 DDR3 DIMMs support DDR3 2133*(OC)/ 2000*(OC) /1600*(OC)/ 1333/ 1066
DRAM (8GB Max)
Supports Dual-Channel mode
*(For more information on compatible components, please visit
http://www.msi.com/index.php?func=testreport)
LAN
Supports LAN 10/100/1000 by Realtek
®
RTL8111E (for H55M-E32 & H55M-E23)
Supports LAN 10/100 by Realtek
®
RTL8105E (for H55M-E21)
Audio
Chip integrated by Realtek
®
ALC892 (for H55M-E32)/ ALC887 (for H55M-E21 &
H55M-E23)
Flexible 8-channel audio with jack sensing
Compliant with Azalia 1.0 Spec
SATA
6 SATA 3Gb/s (SATA1~6) ports by Intel
®
H55
Connectors
Back panel
1 PS/2 keyboard port
1 PS/2 mouse port
6 USB 2.0 ports (for H55M-E32)/ 4 USB 2.0 ports (for H55M-E21 & H55M-E23)
1 HDMI port**
1 VGA port**
1 DVI-D port**
1 LAN port
6 󰘱exible audio ports (for H55M-E32)
3 󰘱exible audio ports (for H55M-E21 & H55M-E23)
**(The VGA, DVI-D & HDMI ports only work with Integrated Graphics Processor)
■
■
■
■
■
■
■
■
■
■
■
■
-
-
-
-
-
-
-
-
-
