2-2
Hardware Setup ▍
MS-7587
Hardware Setup ▍
MS-7587
CM OS
Cl r

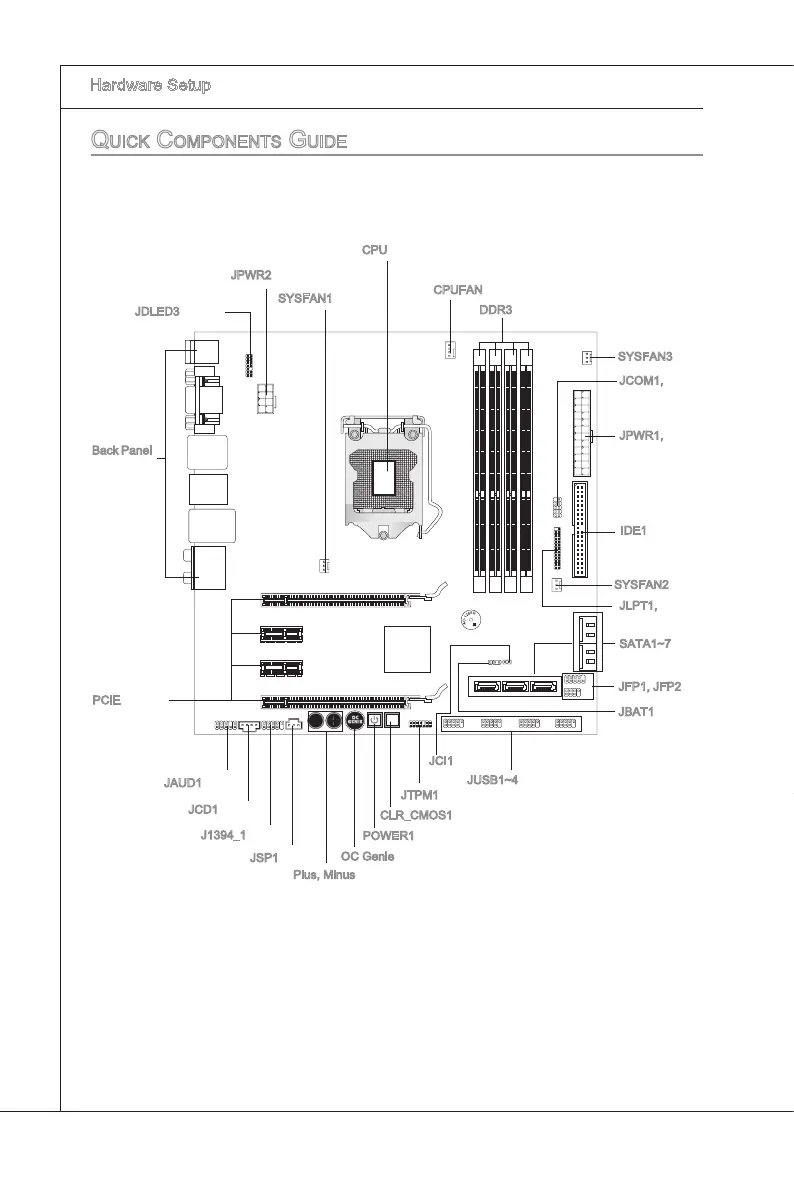

Quick coMponentS guide
Back Panel,
p.2-10
CPU, p.2-3
DDR3, p.2-7
JPWR2, p.2-9
SYSFAN1, p.2-14
CPUFAN, p.2-14
SYSFAN3, p.2-14
SYSFAN2, p.2-14
JPWR1, p.2-9
IDE1, p.2-12
SATA1~7, p.2-13
JFP1, JFP2, p.2-14
JBAT1, p.2-19
JUSB1~4, p.2-15
JCI1, p.2-12
JTPM1, p.2-17
CLR_CMOS1, p.2-21
POWER1, p.2-20
OC Gene, p.2-20
Plus, Mnus, p.2-21
JSP1, p.2-16
JCD1, p.2-15
J1394_1, p.2-18
JAUD1, p.2-17
PCIE, p.2-22
JDLED3, p.2-18
JCOM1, p.2-13
JLPT1, p.2-16
