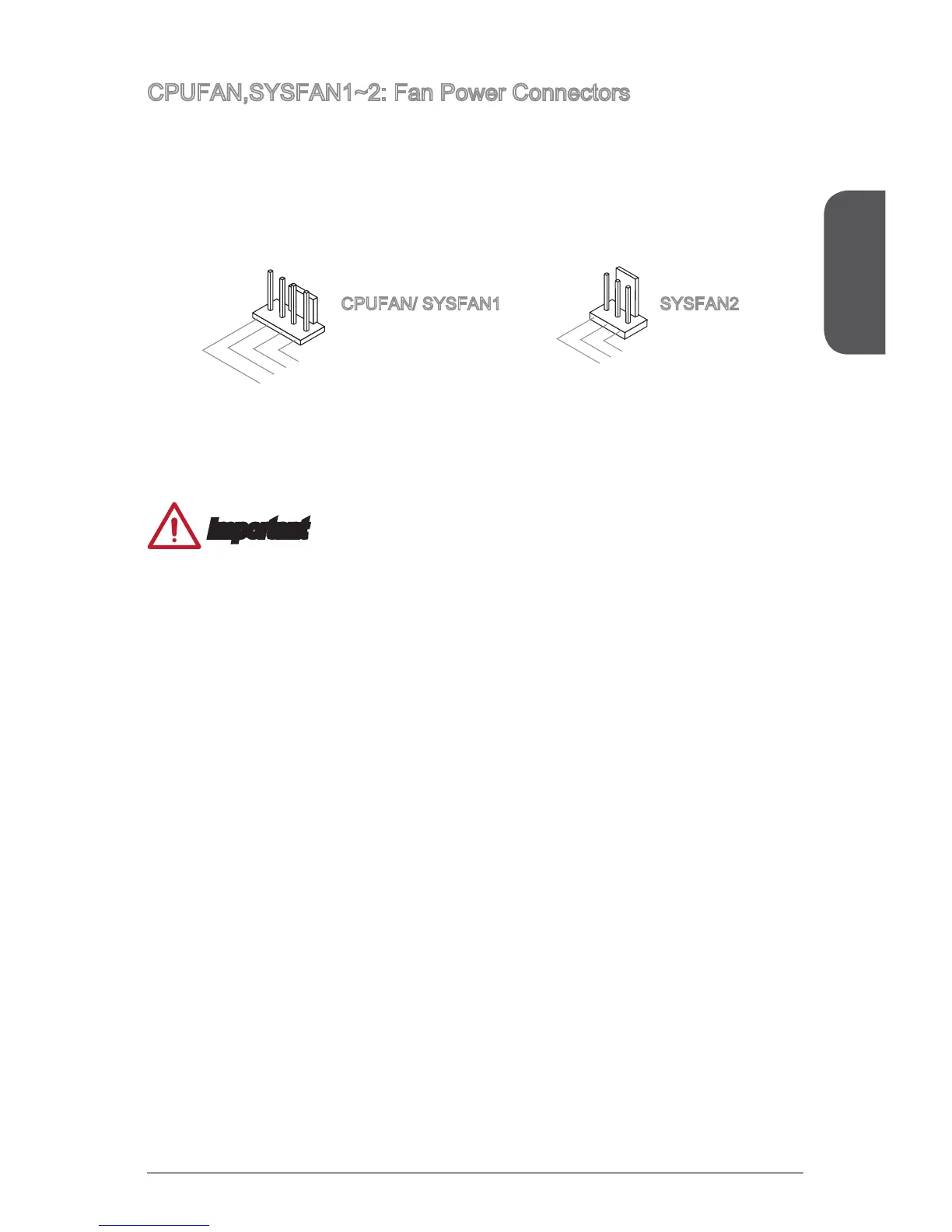

CPUFAN,SYSFAN1~2: Fan Power Connectors
The fan power connectors support system cooling fans with +12V. If the motherboard
has a System Hardware Monitor chipset on-board, you must use a specially designed
fan with a speed sensor to take advantage of the CPU fan control. Remember to
connect all system fans. Some system fans may not connect to the motherboard and
will instead connect to the power supply directly. A system fan can be plugged into
any available system fan connector.
1
.Ground
2.+12V
3.Sens
e
4.Speed
C
ontro
l
1
.Ground
2.+12V
3.No
Us
e
CPUFAN/ SYSFAN1 SYSFAN2
Important
Please refer to your processor’s o󰘲cial website or consult your vendor to 󰘰nd
recommended CPU heatsink.
These connectors support Smart Fan Control with liner mode. The Command
Center utility can be installed to automatically control the fan speeds according to
the CPU’s and system’s temperature.
If there are not enough ports on the motherboard to connect all system fans,
adapters are available to connect a fan directly to a power supply.
Before 󰘰rst boot up, ensure that there are no cables impeding any fan blades.
•
•
•
•
