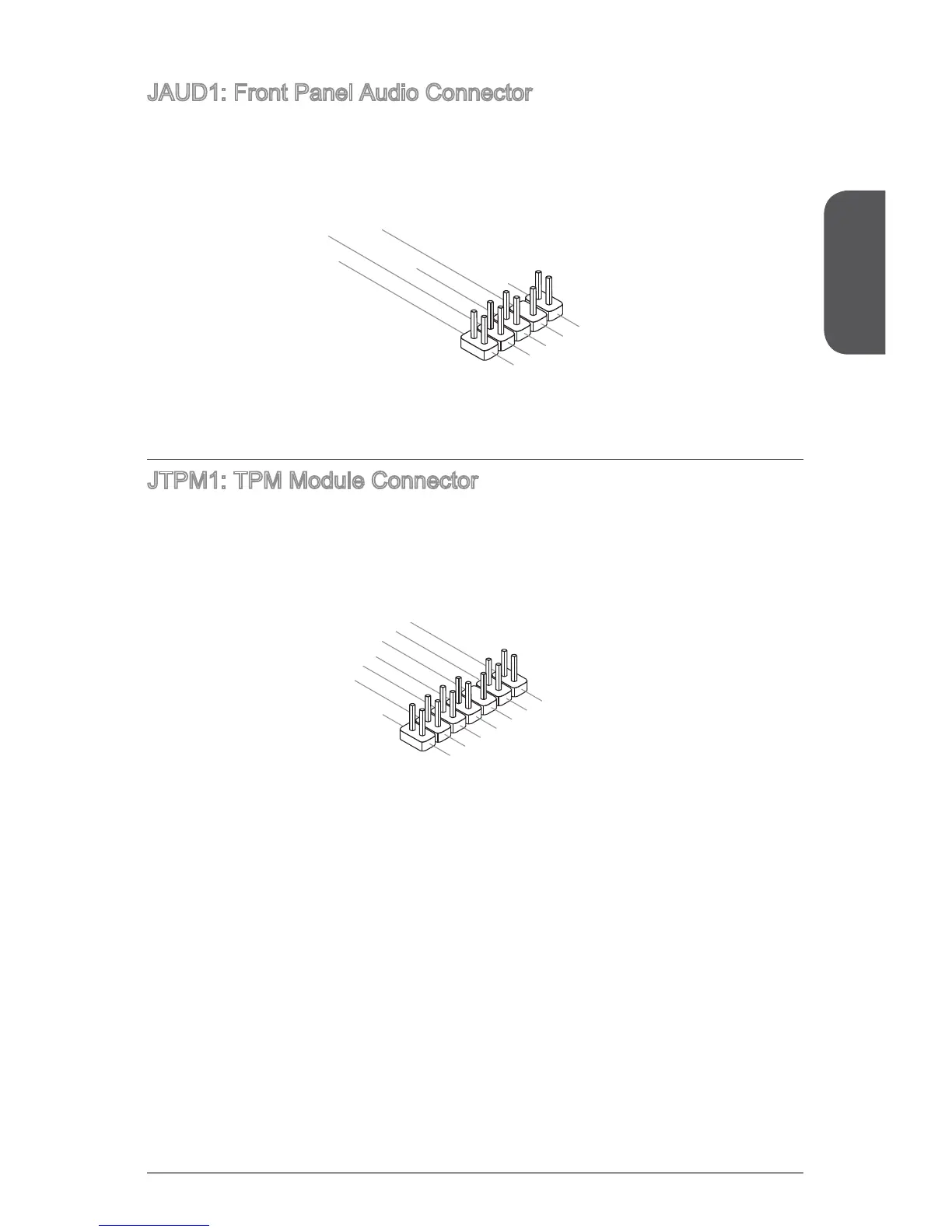

JAUD1: Front Panel Audio Connector
This connector allows you to connect the front audio panel located on your computer
case. This connector is compliant with the Intel
®
Front Panel I/O Connectivity Design
Guide.
1.MI
C L
3.MIC R
10.Head
P
hone
Detection
5.Head
P
hone
R
7.SENSE_SEN
D
9.Head
P
hone
L
8.No
Pi
n
6.MI
C D
etection
4.NC
2
.Ground
JTPM1: TPM Module Connector
This connector connects to a TPM (Trusted Platform Module). Please refer to the
TPM security platform manual for more details and usages.
10.No
Pi
n
14.Ground
8.5V
P
ower
12.Ground
6.Serial
IR
Q
4.3.3V
P
ower
2.3V
Standby
p
ower
1.LP
C C
loc
k
3.LP
C
Rese
t
5.LP
C a
ddres
s &
data
p
in0
7.LP
C a
ddres
s &
data
p
in1
9.LP
C a
ddres
s &
data
pin2
11
.LPC
a
ddres
s &
data
p
in3
13.LP
C
Fram
e

MSI H81M-P33 Series Specifications

General

Form Factor	Micro ATX
Chipset	Intel H81
Socket	LGA 1150
Memory Slots	2 x DIMM
Maximum Memory	16 GB
Memory Standard	DDR3 1600/ 1333 MHz
PCIe Slots	2 x PCIe 2.0 x1
SATA Ports	2 x SATA 6Gb/s, 2 x SATA 3Gb/s
USB 3.0 Ports	2
USB 2.0 Ports	6
Audio	Realtek ALC887
LAN	Realtek RTL8111G Gigabit LAN
Video Outputs	1 x DVI-D, 1 x VGA
