MSI H81M-P33 Series User Guide

English
15

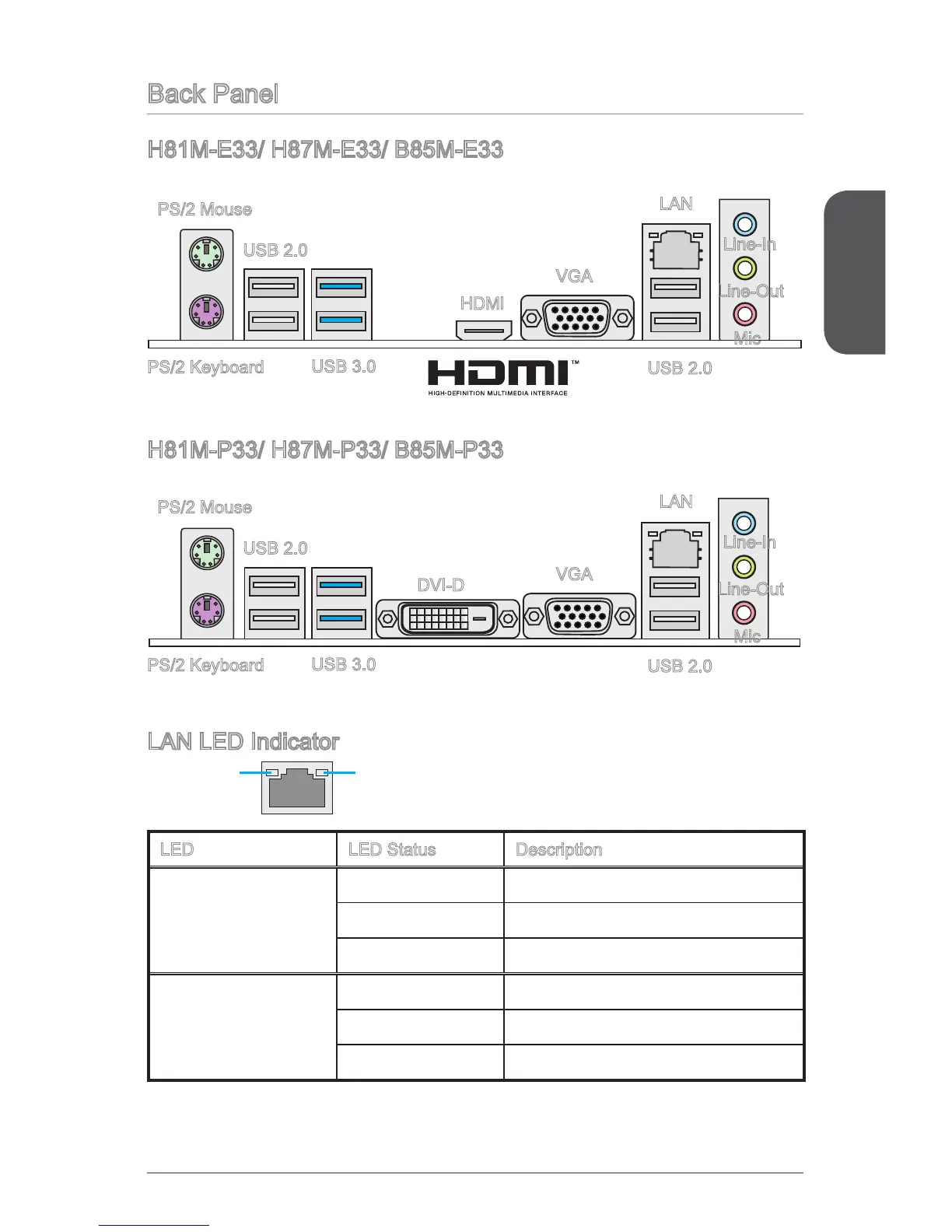

Back Panel
LAN LED Indicator
LINK/ACT
LED
SPEED
LED
LED LED Status Description
Link/ Activity LED
O󰘯 No link
Yellow Linked
Blinking Data activity
Speed LED
O󰘯 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
H81M-E33/ H87M-E33/ B85M-E33
H81M-P33/ H87M-P33/ B85M-P33
PS/2 Mouse
PS/2 Keyboard
USB 2.0
USB 3.0
HDMI
VGA
Line-In
Line-Out
Mic
USB 2.0
LAN
PS/2 Mouse
PS/2 Keyboard
USB 2.0
USB 3.0
DVI-D
VGA
Line-In
Line-Out
Mic
USB 2.0
LAN

MSI H81M-P33 Series Specifications

General

Form Factor	Micro ATX
Chipset	Intel H81
Socket	LGA 1150
Memory Slots	2 x DIMM
Maximum Memory	16 GB
Memory Standard	DDR3 1600/ 1333 MHz
PCIe Slots	2 x PCIe 2.0 x1
SATA Ports	2 x SATA 6Gb/s, 2 x SATA 3Gb/s
USB 3.0 Ports	2
USB 2.0 Ports	6
Audio	Realtek ALC887
LAN	Realtek RTL8111G Gigabit LAN
Video Outputs	1 x DVI-D, 1 x VGA
