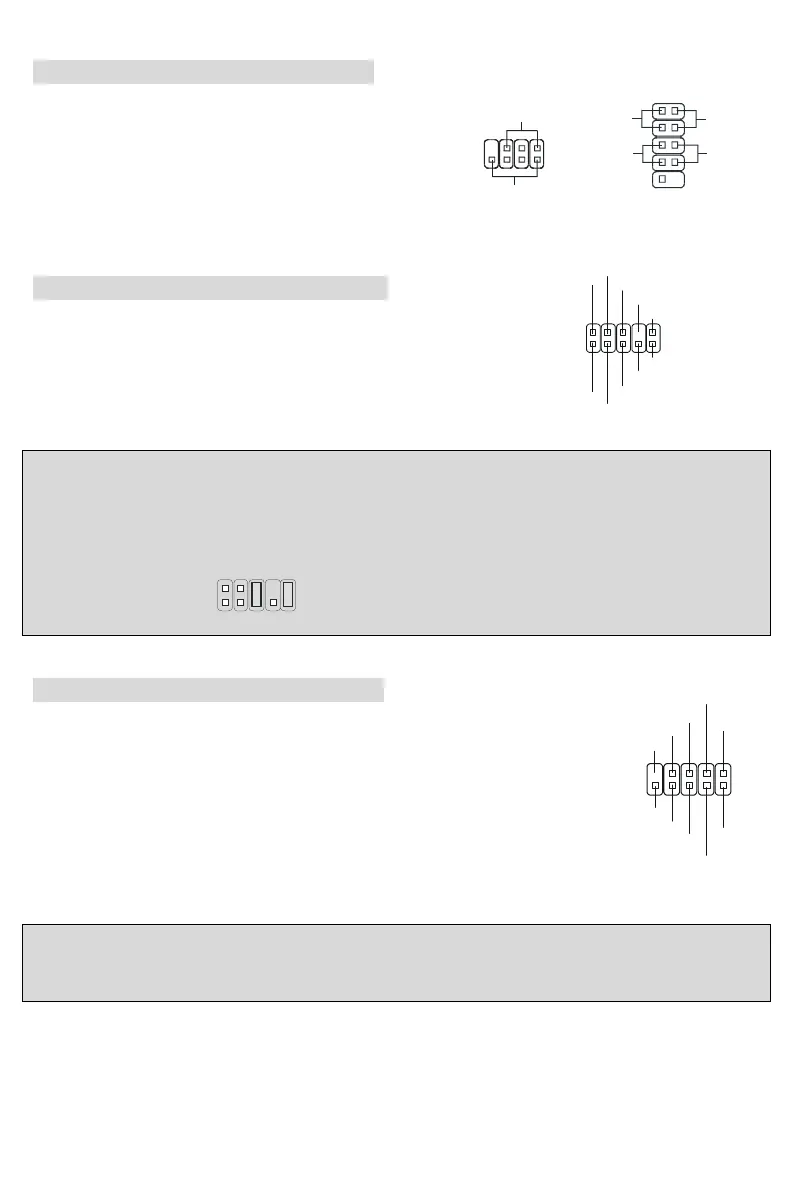

Front Panel Connectors: JFP1/JFP2
The mainboard provides two front panel connectors for
electrical connection to the front panel switches and
LEDs. JFP1 is compliant with Intel Front Panel I/O
Connectivity Design Guide.
Front Panel Audio Connector: JAUD1
The front panel audio connector allows you to connect
to the front panel audio and is compliant with Intel ®
Front Panel I/O Connectivity Design Guide.
MSI Reminds You...
If you do not want to connect to the front audio header, pins 5 & 6, 9 & 10 have to be jumpered in order
to have signal output directed to the rear audio ports. Otherwise, the Line-Out connector on the back
panel will not function.
1
2
9
10
Front USB Connector: JUSB1/JUSB2
The mainboard provides two standard USB 2.0 pin headers JUSB1&JUSB2.
USB2.0 technology increases data transfer rate up to a maximum throughput of
480Mbps, which is 40 times faster than USB 1.1, and is ideal for connecting
high-speed USB interface peripherals such as USB HDD, digital cameras, MP3
players, printers, modems and the like.
MSI Reminds You...
Note that the pins of VCC and GND must be connected correctly, or it may cause some damage.
HDD
LED
Power
LED
Reset
Switch
Powe
r
Switch
1
9
2
10
JFP1
Power
LED
Speaker
1
7
2
8
JFP2
1
2
9
10
AUD_MIC
AUD_MIC_BIAS
AUD_GND
A
UD_V
CC
AUD_FPOUT_R
AUD_RET_L
A
UD_FPOUT_
L
AUD_RET_R
NC
KEY
1
2
9
10
GND
NC
KEY
GND
VCC
VCC
U
S
B0-
US
B1-
USB0+
USB1+
