6-8
MS-7181 Micro-ATX Mainboard
Using 2-, 4- & 6- Channel Audio Function
Connecting the Speakers
When you have set the Multi-Channel Audio Function mode properly in the software
utility, connect your speakers to the correct phone jacks in accordance with the
setting in software utility.
n 2-Channel Mode for Stereo-Speaker Output

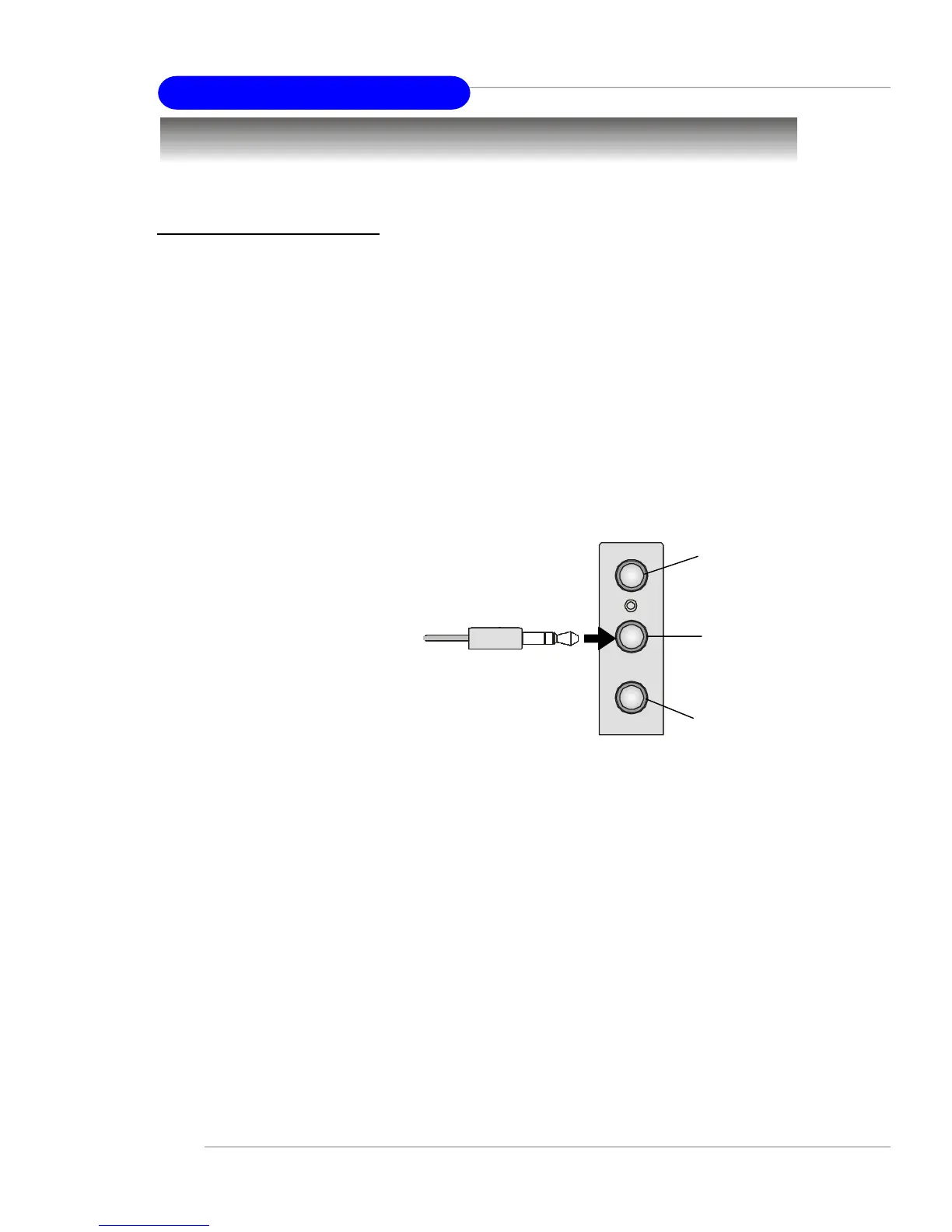

Refer to the following diagram and caption for the function of each phone
jack on the back panel when 2-Channel Mode is selected.
Back Panel
3
1
2
1 Line In
2 Line Out (Front channels)
3 MIC
To Next Page
