MSI K8MM3 Series

3-15
BIOS Setup

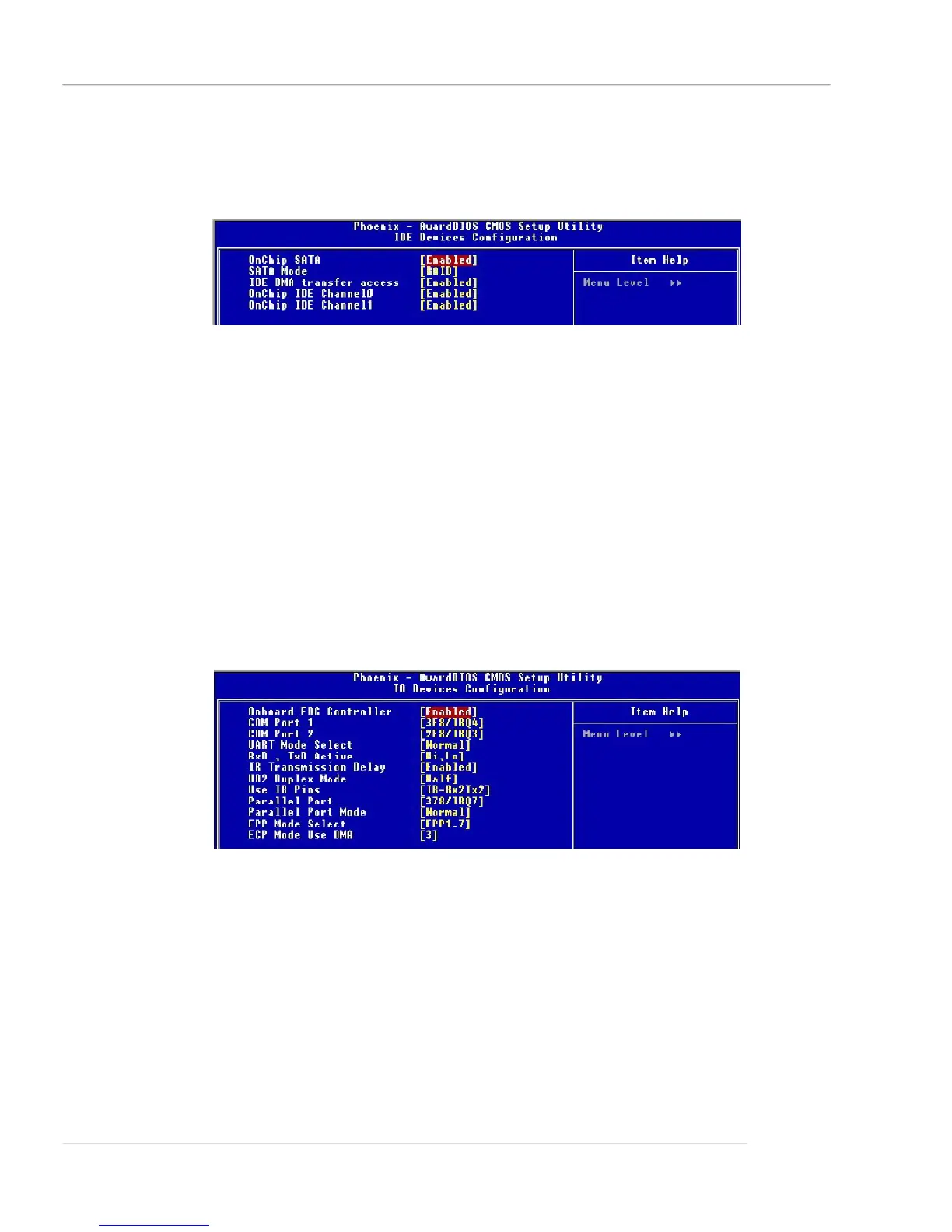

IDE Devices Configuration
Press <Enter> to enter the sub-menu and the following screen appears:
OnChip SATA
This setting controls the onchip SATA. Setting options: [Enabled], [Disabled].
SATA Mode
This item specify the mode for SATA devices. Setting options: [RAID], [IDE].
IDE DMA transfer access
Setting to [Enabled] will open DMA bus master and execute DMA action in DOS,
which will make the data transferring faster. Setting options: [Disabled], [Enabled].
OnChip IDE Channel 0/1
The integrated peripheral controller contains an IDE interface with support for
two IDE channels. Choose [Enabled] to activate each channel separately. Settings:
[Enabled], [Disabled].
IO Devices Configuration
Press <Enter> to enter the sub-menu and the following screen appears:
Onboard FDC Controller
Select [Enabled] if your system has a floppy disk controller (FDC) installed on the
system board and you wish to use it. If you install add-on FDC or the system has
no floppy drive, select [Disabled] in this field. Setting options: [Enabled], [Disabled].
COM Port1/ 2
Select an address and corresponding interrupt for the serial port1/ 2. Setting
options: [3F8/IRQ4], [2E8/IRQ3], [3E8/IRQ4], [2F8/IRQ3], [Disabled], [Auto].
