MSI K8N Neo4-F User Manual

MS-7125 M-ATX Mainboard
E-2-20
Foolproof
design
Connected to J1394 (the 1394
pinheader in GREEN color)

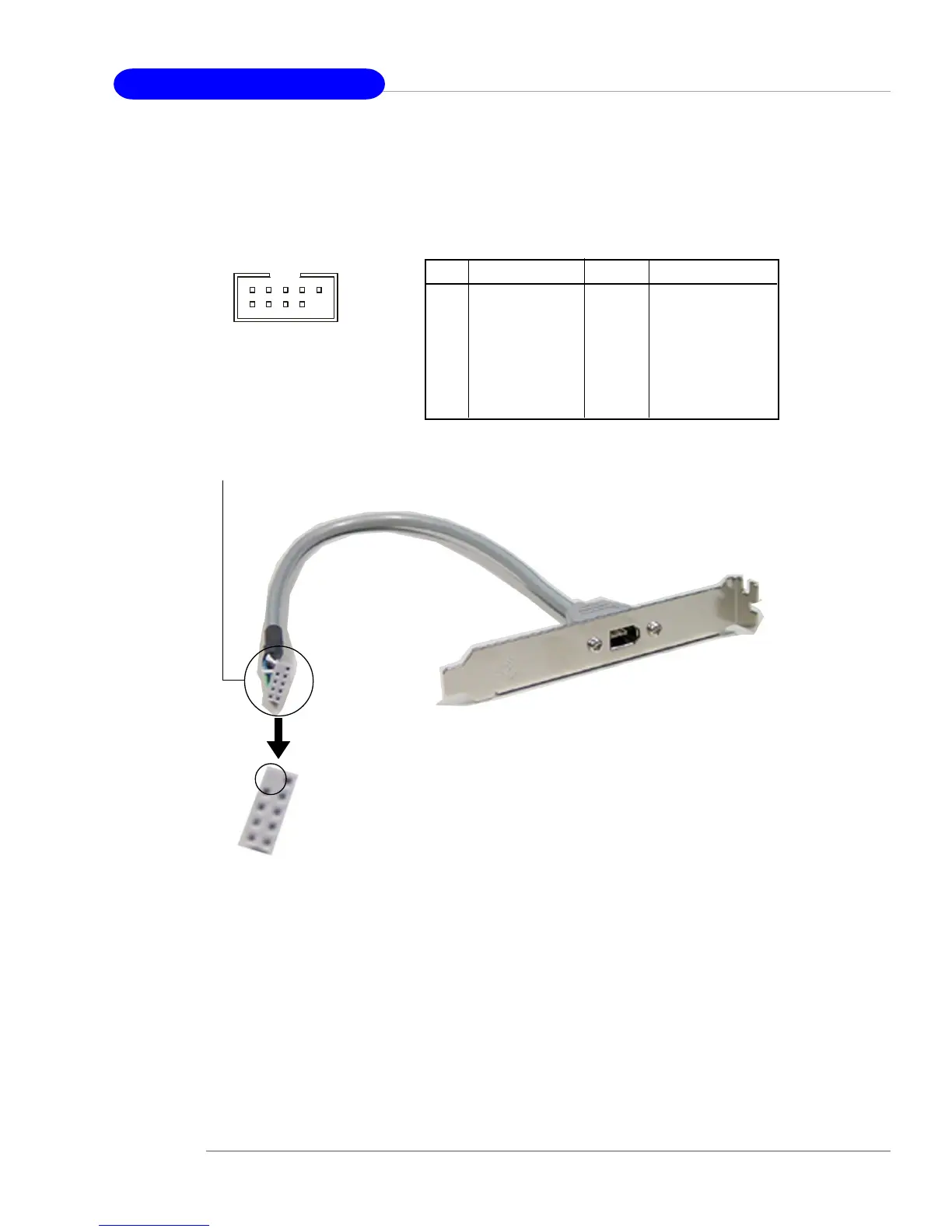

IEEE1394 Bracket (Optional)
IEEE 1394 Connectors: J1394_1 (Optional)
The mainboard provides another 1394 pin header that allows you to connect
IEEE 1394 ports via an external IEEE1394 bracket (optional).
Pin Definition
PIN SIGNAL PIN SIGNAL
1TPA+ 2 TPA-
3 Ground 4 Ground
5 TPB+ 6 TPB-
7 Cable power 8 Cable power
9 Key (no pin) 10 Ground
J1394_1
1
2
9
10
