The main interface is divided into two windows and the toolbar above
contain the main functions. Click on these toolbar buttons to execute their
specific functions. The left windowpane displays the controller and disk drives
and the right windowpane displays the details of the controller or disk drives.
In KT6V, the available features are as following:
Click on o r button to determine the viewing type of left win-
dow pane. There are two viewing types: By controllers and by device. Click on
the object in the left window pane to display the status of the object in the right

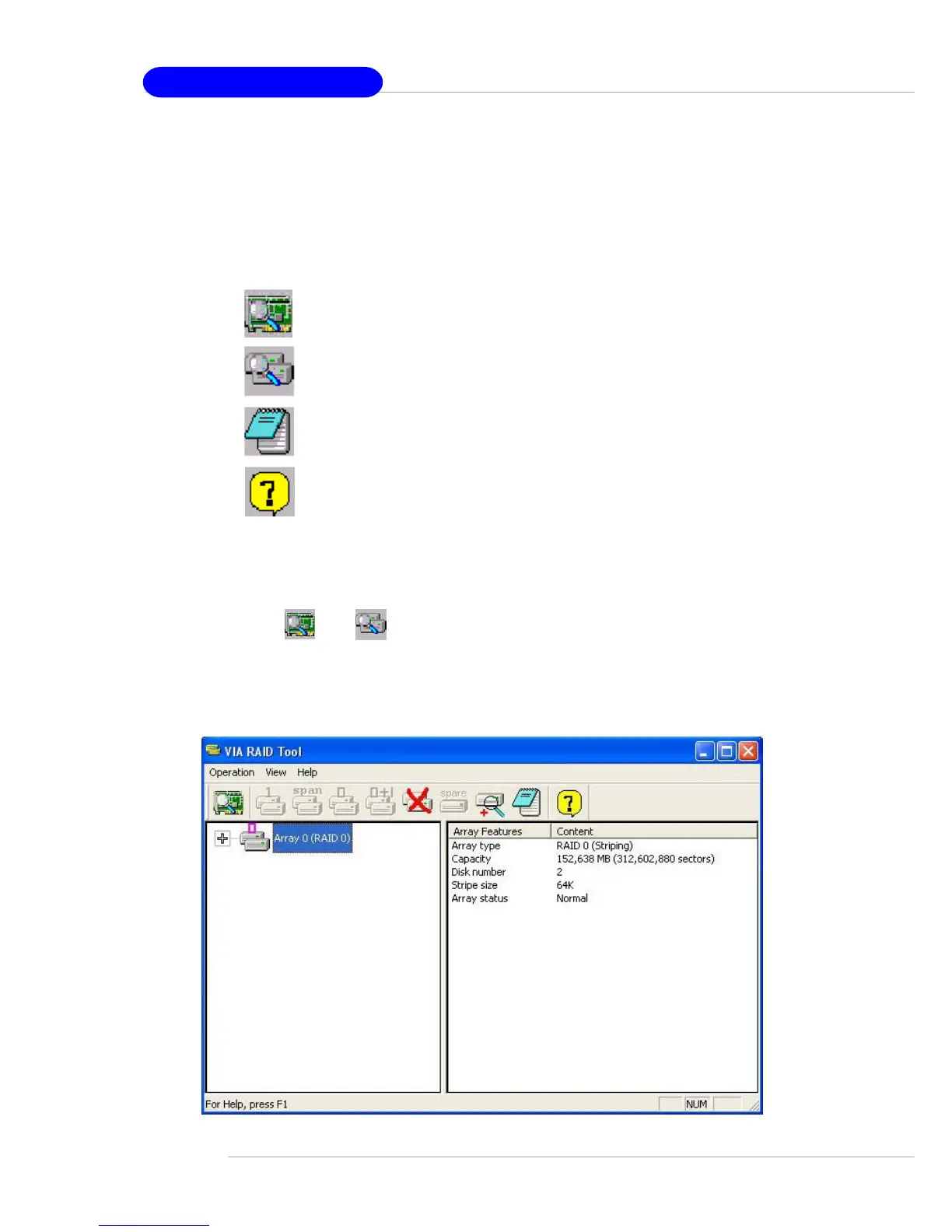

windowpane. The following screen shows the status of Array 0---RAID 0.
View by Controller
View Event log
View by Devices
Help Topics
It means that VT8237 SATA RAID in KT6V only has the feature of
monitoring the statuses of RAID 0 and RAID 1.
