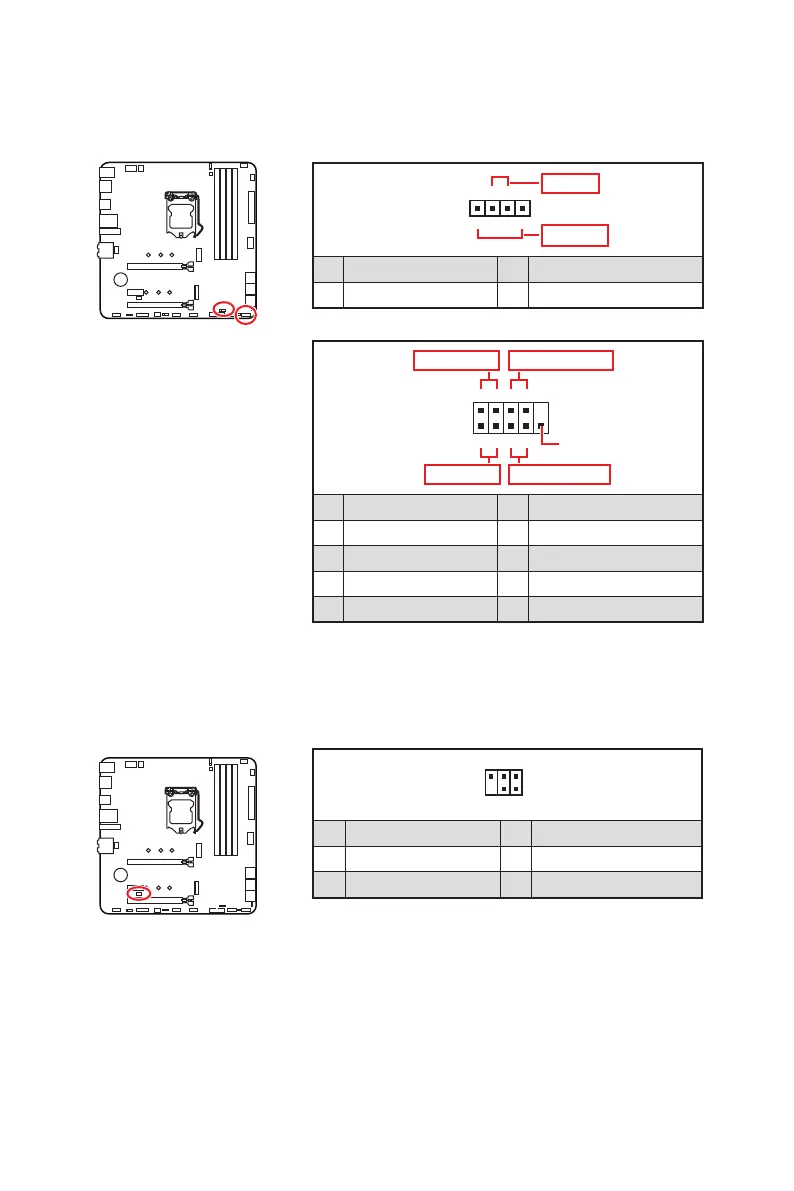

MSI MAG B560M MORTAR WIFI - Jdash1: チューニングコントローラーコネクター; Jfp1 Jfp2: フロントパネルコネクター

23
󴚮󸋖

󳲜󶬖
1
2 10
9
+
+
+  
+
Power LED
HDD LED Reset Switch
Reserved
Power Switch
JFP1
1 HDD LED + 2 Power LED +
3  4 
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
1
JFP2
+
+


Speaker
Buzzer
1  2 Buzzer +
3  4 Speaker +

󳲜󶬖
1
2 6
5
1 No Pin 2 NC
3 MCU_SMB_SCL_M 4 MCU_SMB_SDA_M
5 VCC5 6 Ground
