MSI MAG B560M MORTAR WIFI - M2_1~2: M.2 Slots (Key M)

20


Installing M.2 module

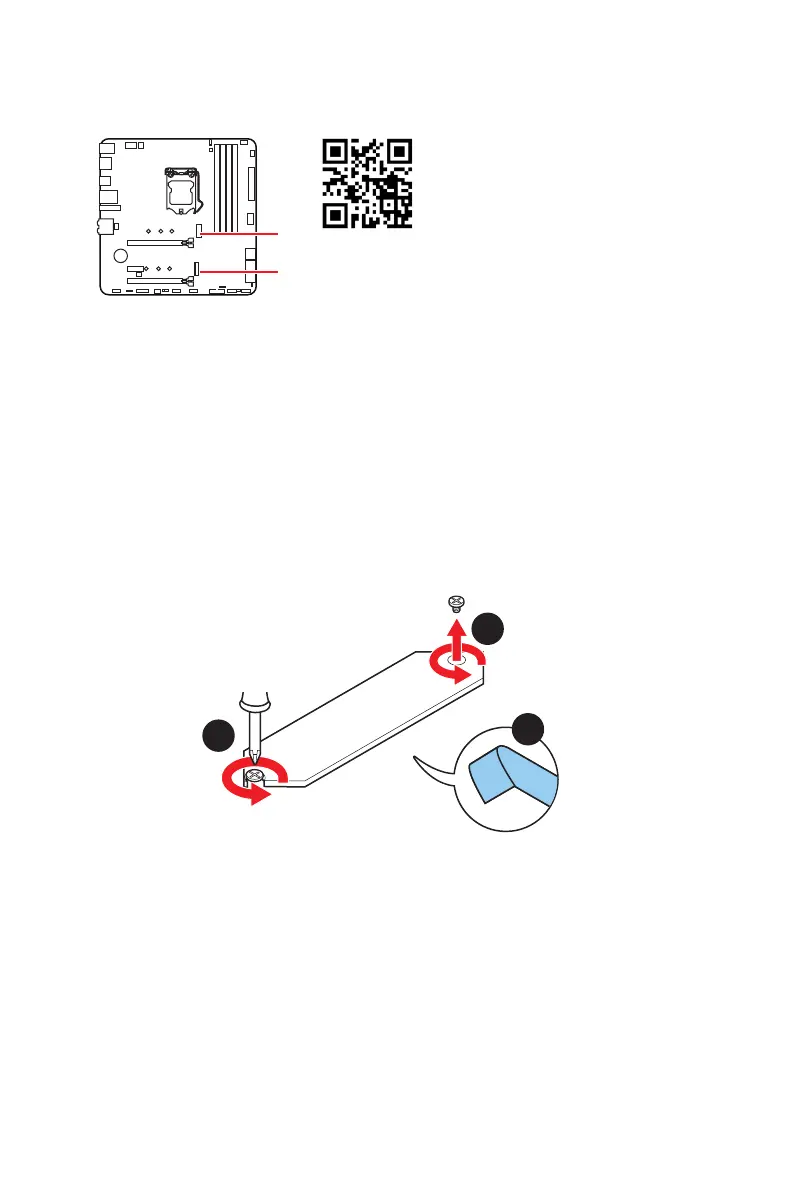

1. Loosen the screws of M.2 SHIELD FROZR heatsink.
2. Remove the M.2 SHIELD FROZR and remove the protective films from the thermal
pads of heatsink.
2
1
1
M2_1
M2_2

Important
 Intel® RST only supports PCIe M.2 SSD with UEFI ROM.
 Intel® Optane™ Memory Ready for M2_2 slot.

Video Demonstration
Watch the video to learn how to Install
M.2 SSD.
https://youtu.be/2UeWMgjwogU
