Rear I/O Panel

Audio Ports

2 4 6 8
  
Rear Speaker Out   
 
    
Mic In
Blank: empty)
LAN Port LED Status Table
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100/1000 Mbps connection
Orange 2.5 Gbps connection

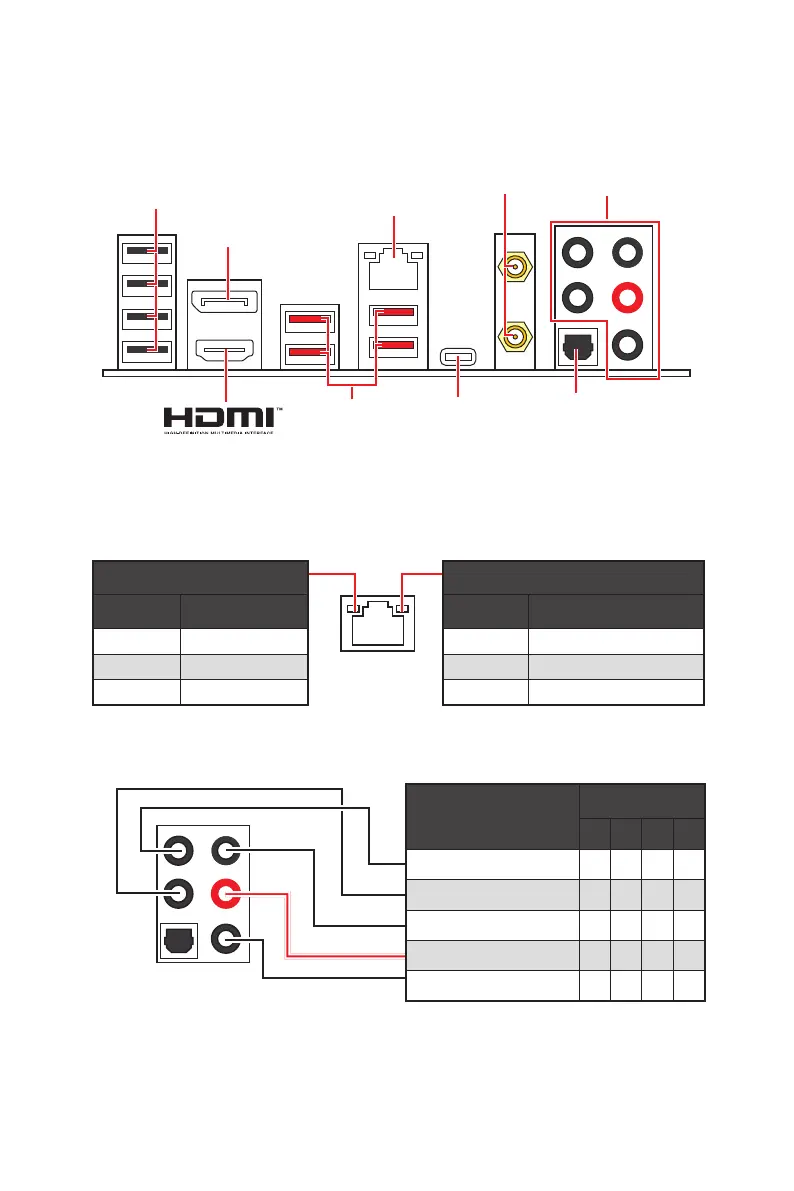

Rear I/O Panel
USB 3.2
Gen 2x2
(20Gbps)

2.5Gbps LAN

connectors
USB 2.0

USB 3.2
Gen 2
(10Gbps)

DisplayPort
Audio Ports
Optical

