MSI MAG B660 TOMAHAWK WIFI DDR4 - PCI_E1~3: PCIe Expansion Slots; JFP1, JFP2: Front Panel Connectors

20


M2_1
M2_2
M2_3

Important
 Intel® RST only supports PCIe M.2 SSD with
UEFI ROM.
 M2_2~3 slots support Intel® Optane™
Memory.

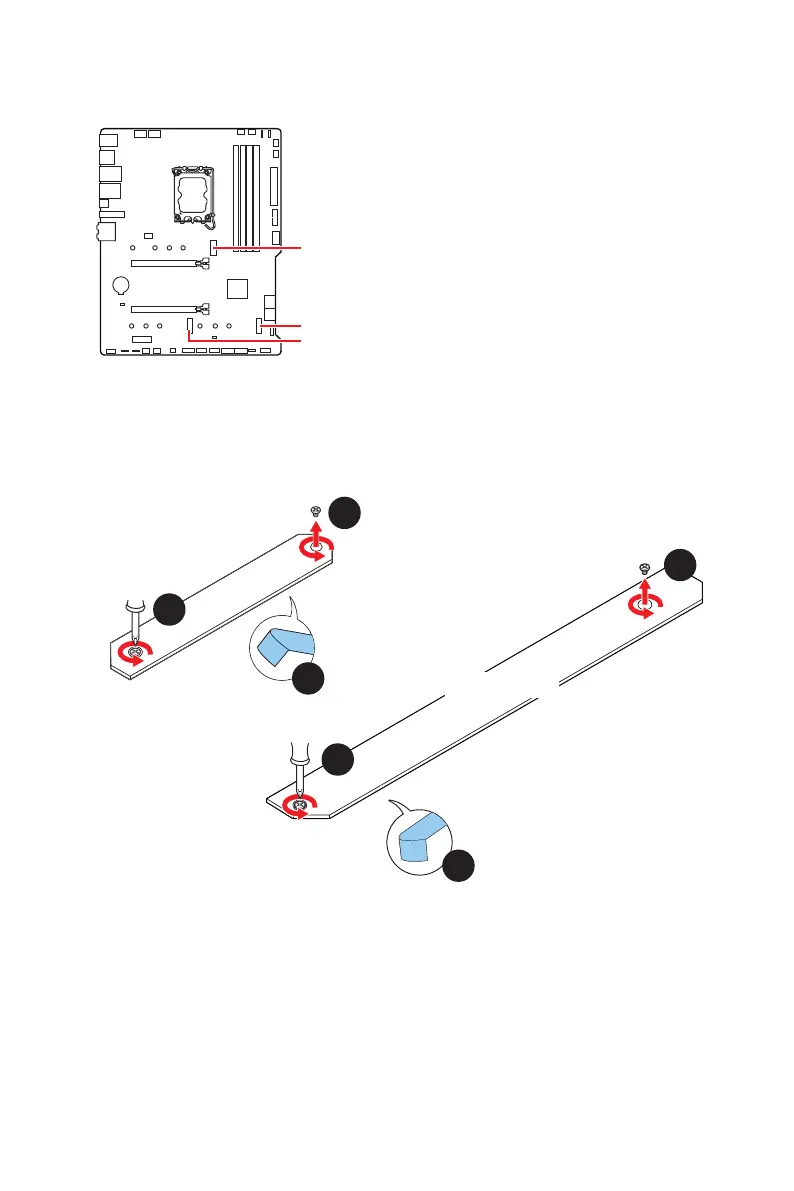

M.2 slot installation
1. Loosen the screws of M.2 SHIELD FROZR heatsink.
2. Remove the M.2 SHIELD FROZR and remove the protective films from the thermal
pads.
2
2
1
1
1
1
M2_2&M2_3
M2_1
