MSI MAG B660 TOMAHAWK WIFI DDR4 User Guide

28

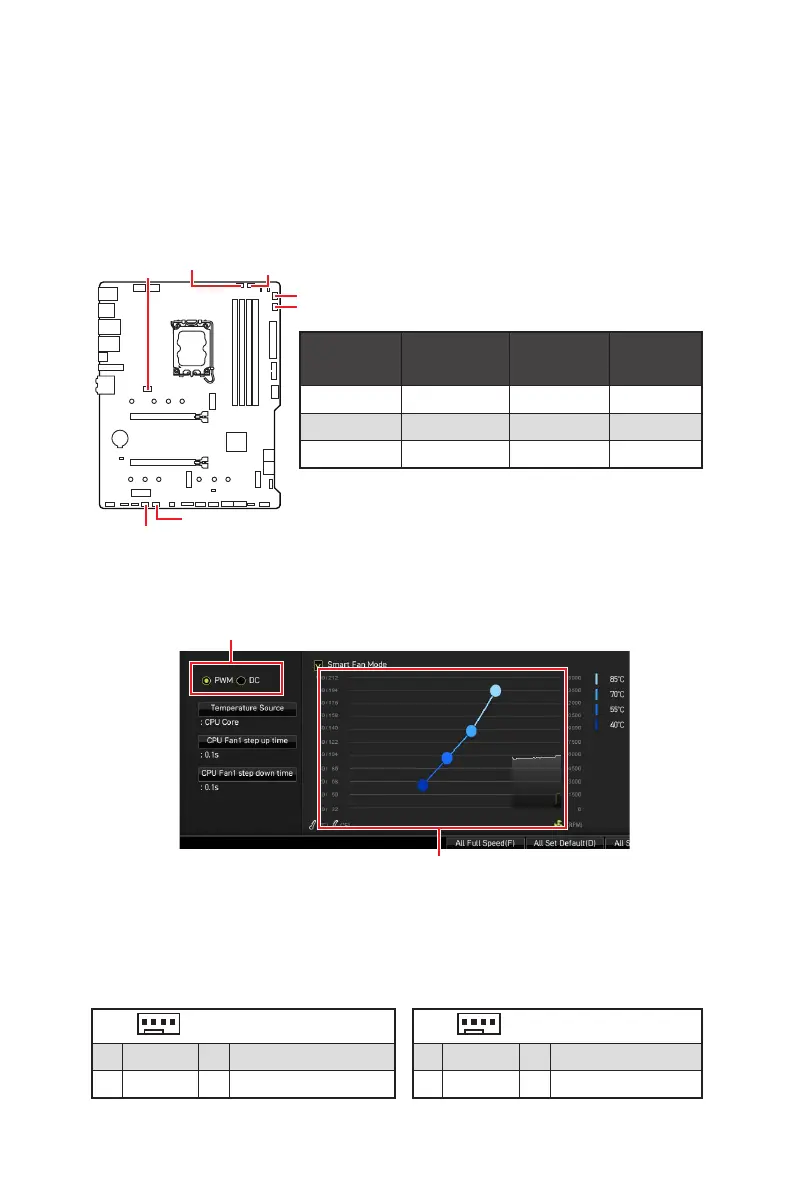

Übersicht der Komponenten

Diese Anschlüsse können im PWM (Pulse Width Modulation) Modus

Lüfteranschlüsse konstante 12V Ausgang und regeln die Lüftergeschwindigkeit




Sie können unter BIOS > HARDWARE MONITOR 
umschalten und die Lüfterdrehzahl ändern.
Wählen Sie den PWM

Wichtig
Überprüfen Sie die ordnungsgemäße Funktion der Lüfter nach dem Umschalten des

Die Gradientenpunkte des Lüfterverlaufs erlauben die

Temperatur.

CPU_FAN1
SYS_FAN3
SYS_FAN4
PUMP_FAN1
SYS_FAN1
SYS_FAN2
SYS_FAN5
Anschluss
Standard-

Max. Strom
Max.
Leistung
CPU_FAN1 PWM Modus 2A 24W
PUMP_FAN1 PWM Modus 3A 36W
SYS_FAN1~5 DC Modus 1A 12W
1
Pin-Belegung des PWM-Modus
1 Ground 2 +12V
3 Sense 4 Speed Control Signal
1

1 Ground 2 Voltage Control
3 Sense 4 NC

MSI MAG B660 TOMAHAWK WIFI DDR4 Specifications

General

Processor socket	LGA 1700
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium Gold
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2666, 2933, 3200, 3333, 3400, 3466, 3600, 3733, 3800, 4000, 4200, 4400, 4600, 4800 MHz
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express 4.0, SATA III
Parallel processing technology support	Crossfire
USB 2.0 connectors	2
Number of SATA III connectors	6
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth version	5.2
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
Component for	PC
Motherboard chipset	Intel B660
Audio output channels	7.1 channels
Motherboard form factor	ATX
BIOS type	-
Harmonized System (HS) code	84733020
Weight	1000 g

Weight and Dimensions

Depth	305 mm
Width	244 mm
Height	65 mm
