53

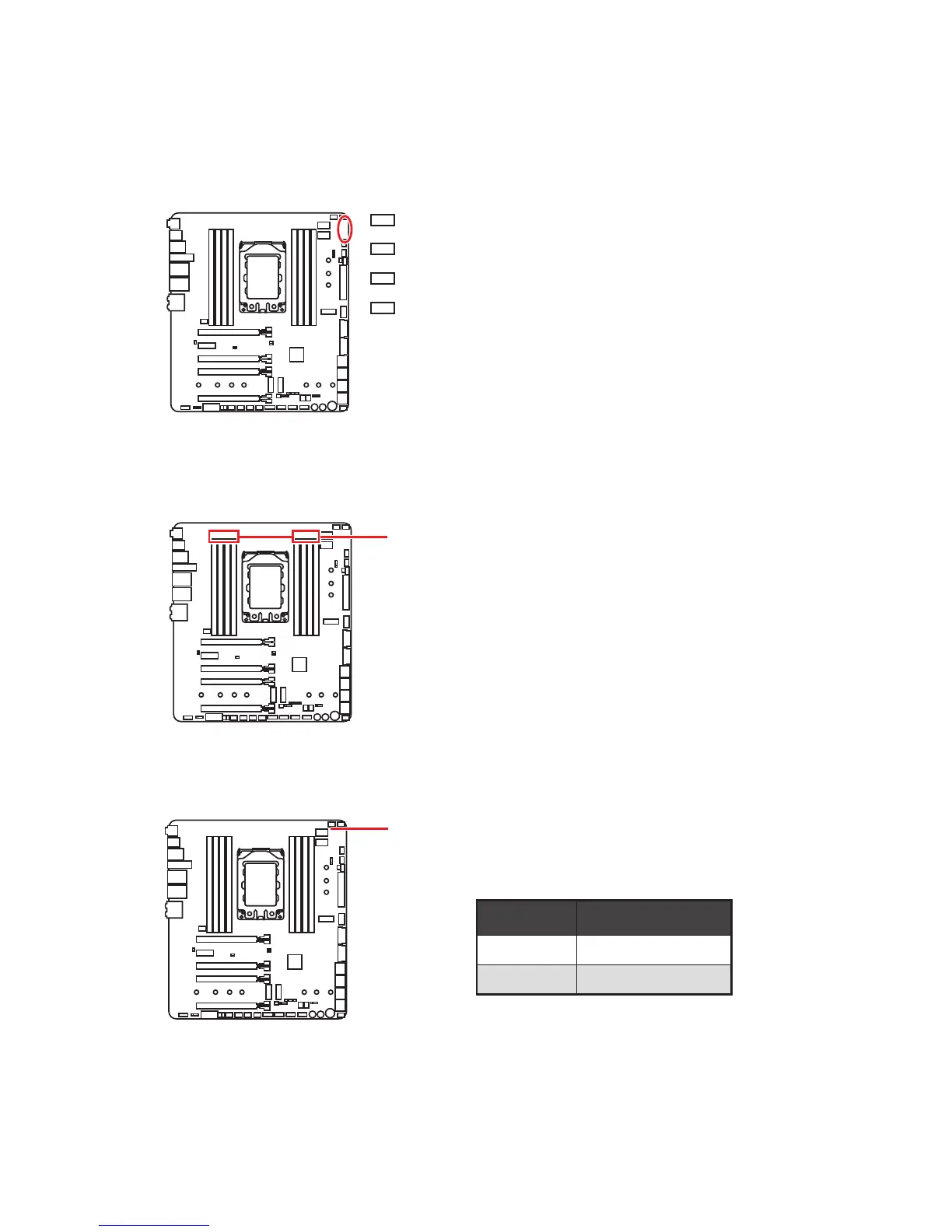

Onboard LEDs
Onboard LEDs
EZ Debug LED
These LEDs indicate the debug status of the motherboard.
CPU - indicates CPU is not detected or fail.
DRAM - indicates DRAM is not detected or fail.
VGA - indicates GPU is not detected or fail.
BOOT - indicates the booting device is not detected
or fail.
DIMM LEDs
These LED indicate the memory modules are installed.
DIMM LEDs
LED color Fan control mode
Red PWM mode
Green DC mode
Fan LEDs
These LEDs indicate the fan control mode.
CPU_FAN1 LED
