MSI MEG X570 ACE - Rear I;O Panel Overview

12

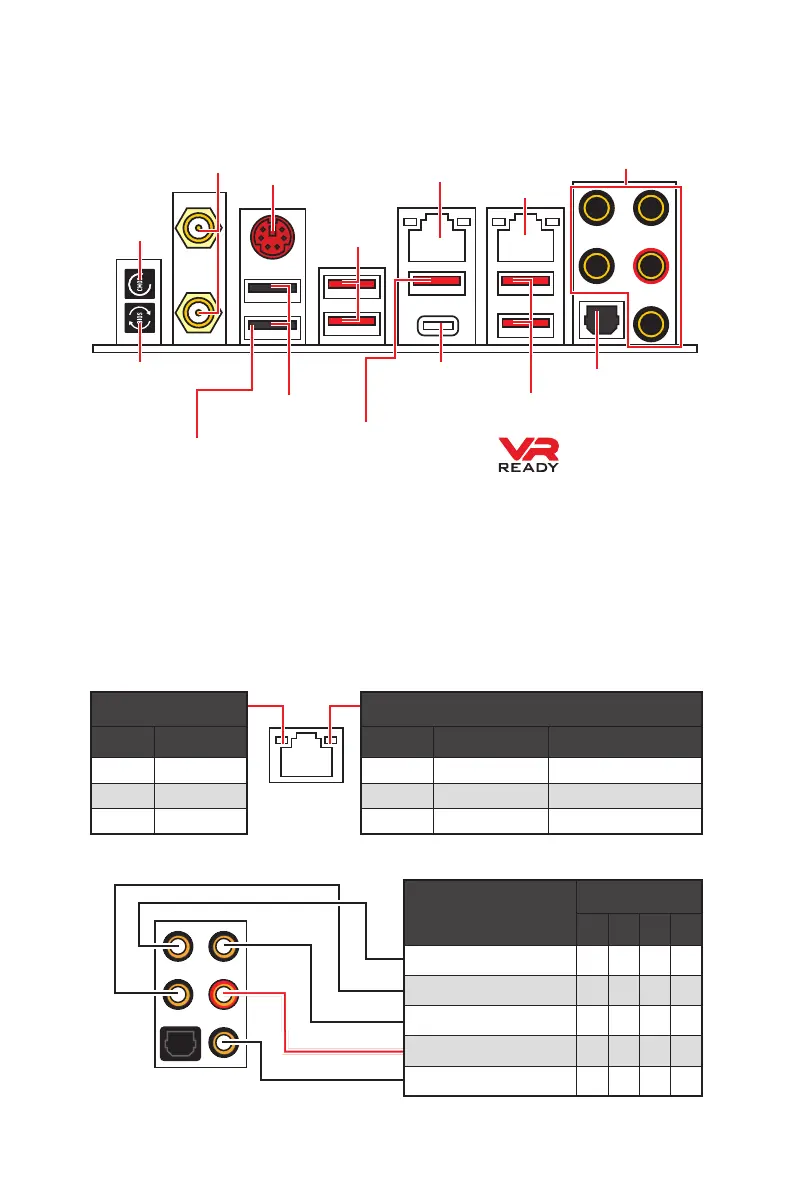

Rear I/O Panel
USB 3.2
Gen 2
Type-C*
USB 3.2 Gen 2
Type-A*
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Gigabit LAN 2.5 Gbps LAN
Off 10 Mbps 10 Mbps
Green 100 Mbps 100 Mbps / 1 Gbps
Orange 1 Gbps 2.5 Gbps
LAN Port LED Status Table
Audio Ports Configuration
Audio Ports
Channel
2 4 6 8
Center/ Subwoofer Out  
Rear Speaker Out   
Line-In/ Side Speaker Out 
Line-Out/ Front Speaker Out    
Mic In
(: connected, Blank: empty)
Rear I/O Panel
PS/2 Combo port
LAN 2.5 Gbps
LAN
USB 2.0 Type-A
Audio Ports
Optical S/PDIF-Out
Clear CMOS
button
Wi-Fi Antenna
connectors
USB 3.2 Gen 2
Type-A
USB 3.2
Gen1
Type-A
Flash BIOS Button
*USB 3.2 Gen2 (3rd Gen AMD Ryzen™) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/
Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™
Gr
aphics)
y Clear CMOS button - Power off your computer. Press and hold the Clear CMOS button
for about 5-10 seconds to reset BIOS to default values.
y Flash BIOS Port/ Button - Please refer to page 44 for Updating BIOS with Flash BIOS
Button.
Flash BIOS Port
