MSI MEG X570 ACE - OC1: GAME BOOST Knob

25
Overview of Components
Using GAME BOOST Knob
To setup the GAME BOOST knob, take the following steps:
1. Set the GAME BOOST knob to hardware mode in BIOS Setup.
2. Power off the computer.
3. Rotate the GAME BOOST knob to select the overclocking stage as you desire.
Stage
CPU Frequency (GHz)
Ryzen 7 Ryzen 5 Ryzen 3
2700X 2700 2600X 2600 2400G 2200G
0 3.7 3.2 3.6 3.4 3.6 3.2
1 4.1 3.6 4 3.8 3.8 3.6
2 4.15 3.65 4.05 3.85 3.85 3.65
4 4.2 3.7 4.1 3.9 3.9 3.7
6 4.25 3.75 4.15 3.95 3.95 3.75
8 4.3 3.8 4.2 4 4 3.8
10 4.35 3.85 4.25 4.05 4.05 3.85
11 4.4 3.9 4.3 4.1 4.1 3.9
4. Power on and then GAME BOOST will automatically overclock processor depending
on the stage you selected.
To disable GAME BOOST:
1. Set the GAME BOOST knob to HW mode in BIOS Setup.
2. Power off the computer.
3. Rotate the GAME BOOST knob to 0 and then power on. The configuration
parameters will be returned to default values.

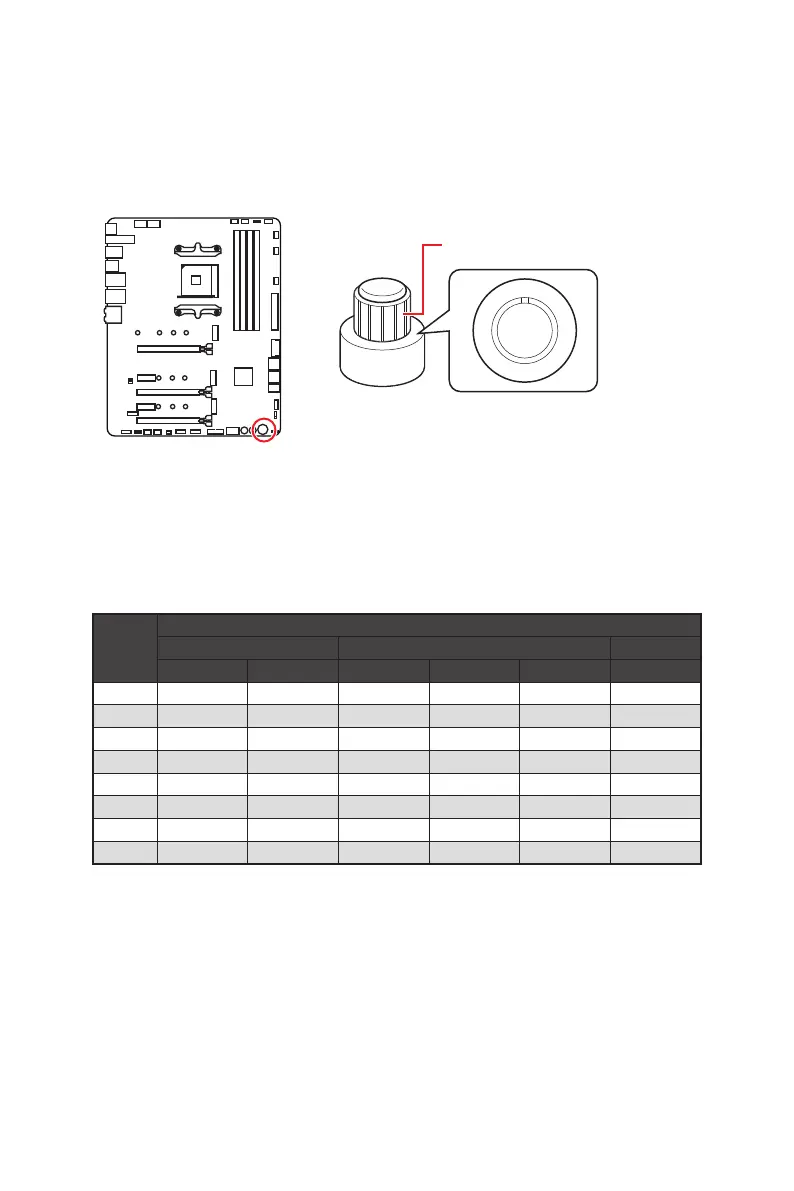

OC1: GAME BOOST Knob
This knob allows you to manually select a stage from number 0 (default) to number 11
(extreme) for overclocking the processor. The processor󾙓s voltage and frequency will
be automatically adjusted after you power on your computer. This function will only be
available if the installed processor supports this function.
GAME BOOST knob
0
1
2
4
6
8
1
0
1
1
