MSI MEG X570 ACE - Page 34

22
Overview of Components
30º30º
30º30º
30º30º

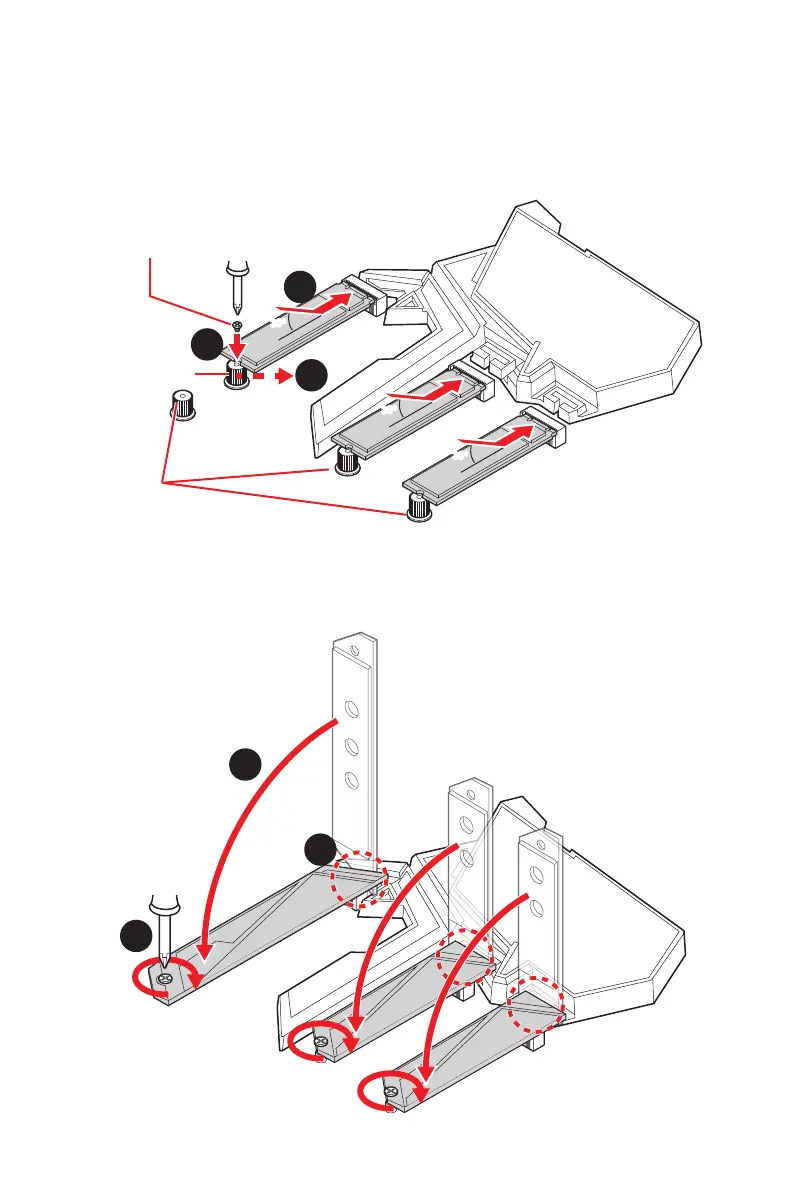

4. Insert your M.2 SSDs into the M.2 slots at a 30-degree angle.
5. If the M.2 SSD is shorter than the M.2 SHIELD FROZR heatsink, please secure
the M.2 SSD in place with 8.5H M.2 screw. If the length of M.2 SSD equals the M.2
SHIELD FROZR heatsink, please skip this step.
6
7
8
3
4
8.5H M.2 screw
M.2 standoff
heatsink
standoff
5
6. Insert the M.2 SHIELD FROZR heatsink shaft into the groove.
7. Push the M.2 SHIELD FROZR heatsink down.
8. Secure the M.2 SHIELD FROZR heatsink to the heatsink standoff.
