43
Overview of Components

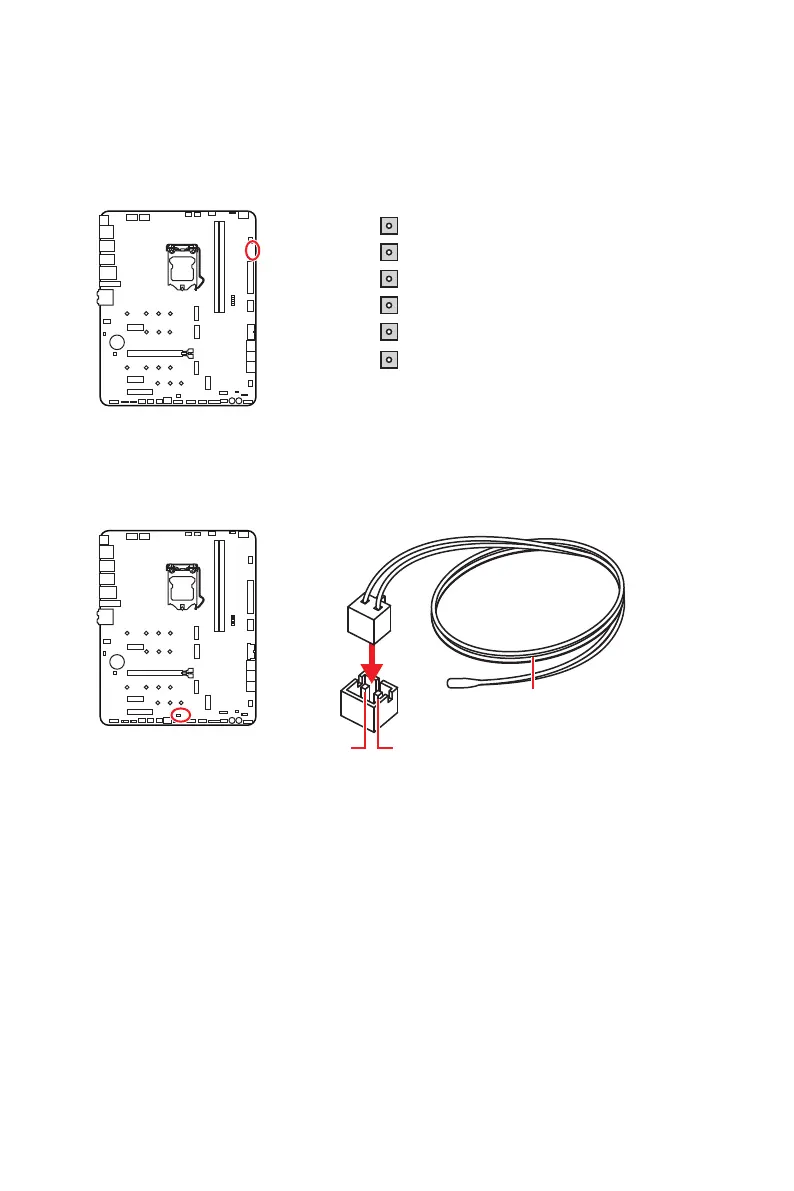

V-Check Points Lite
These voltage checkpoints are used to measure the current system voltages. A
multimeter (not included) will be required to check voltages. To measure voltage,
place test leads on the GND (screw mounting hole) and a specific V-Check Point.
Please refer to the manual of your multimeter for more information.
VCCIO
GND
VCCSA
DRAM
VCORE
VCCIO2
T_SEN1: Thermal Sensor Connectors
This connector allows you to connect the thermistor cable and use it to monitor the
temperature of the detection point.
Thermistor cable
GND
Sense
