Overview of Components
M2_1~4: M.2 Slots (Key M)
Installing M.2 module

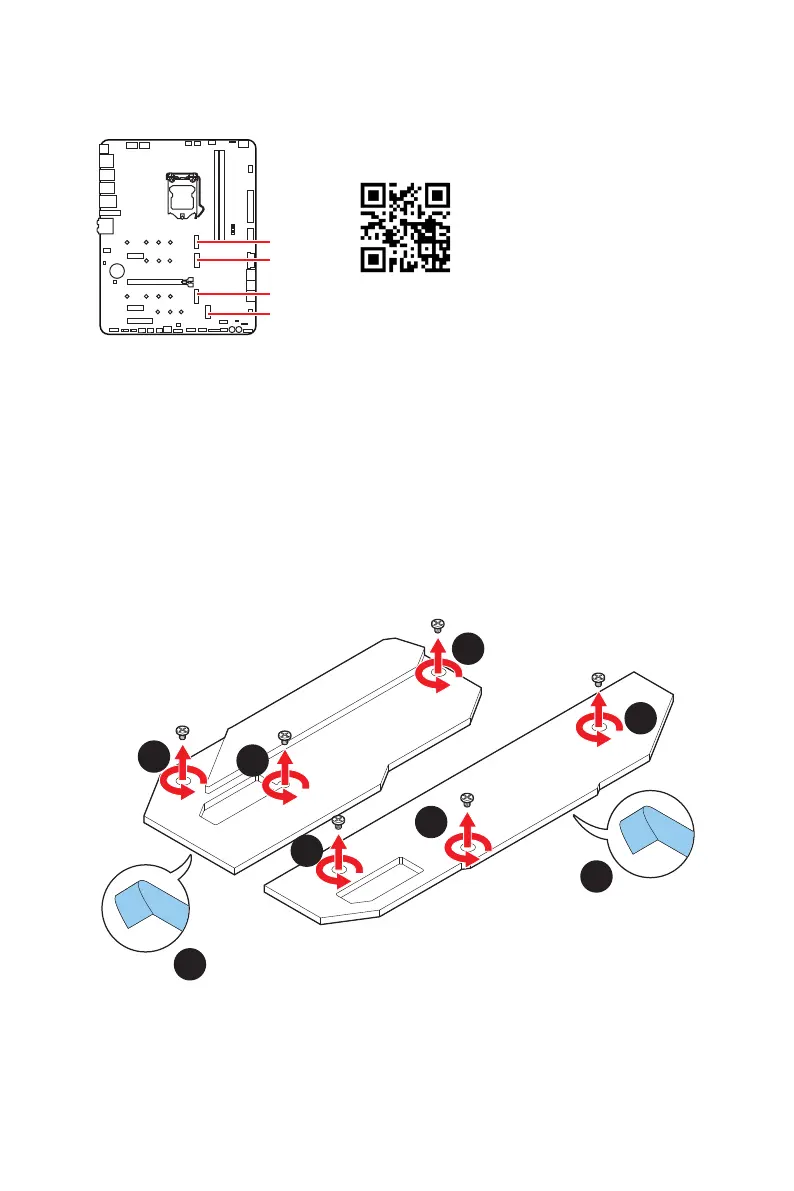

1. Loosen the screws of M.2 SHIELD FROZR heatsink.
2. Remove the M.2 SHIELD FROZR and remove the protective films from the thermal
pads of heatsink.
2
2
1
1
1
1
1
1
M2_1
M2_2
M2_3
M2_4
⚠
Important
∙ Intel® RST only supports PCIe M.2 SSD with UEFI ROM.
∙ Intel® Optane™ Memory Ready for M2_2 (from chipset), M2_3 (from chipset) and
M2_4 slot.
⚽
Video Demonstration
Watch the video to learn how to
Install M.2 SSD.
https://youtu.be/2UeWMgjwogU
M2_1 & M2_2
M2_3 & M2_4
