25
Overview of Components

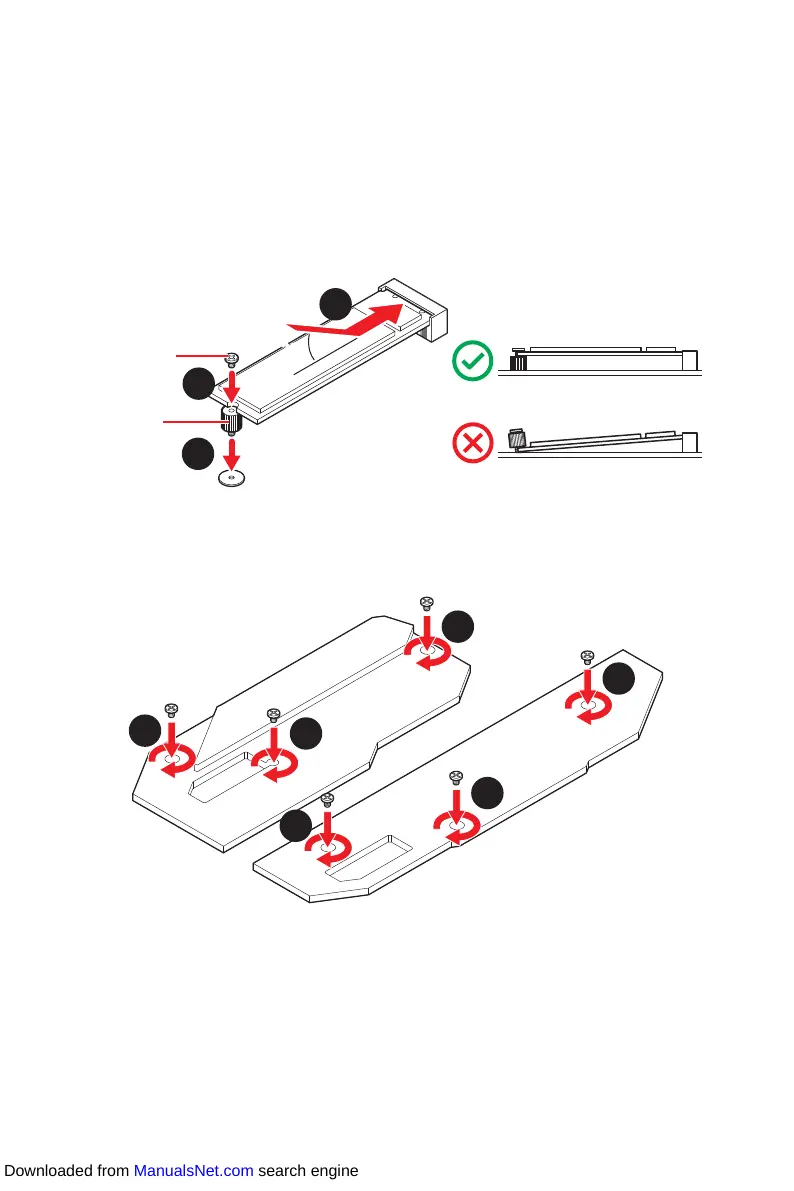

3. Secure the supplied M.2 standoff according to your M.2 SSD length if need.
4.
5. Secure the M.2 SSD in place with the supplied M.2 8.5H screw.
6
6
6
6
6
6
6. Put the M.2 SHIELD FROZR heatsink back in place and secure it.
30º30º
5
4
3
8.5H screw
Standoff
Important
Skip step 3 and step 5, if you install 22110 M.2 SSD into M2_1 and M2_3 slots or 2280
M.2 SSD into M2_2 and M2_4 slots.
