MSI MEG Z590 UNIFY

32
Overview of Components

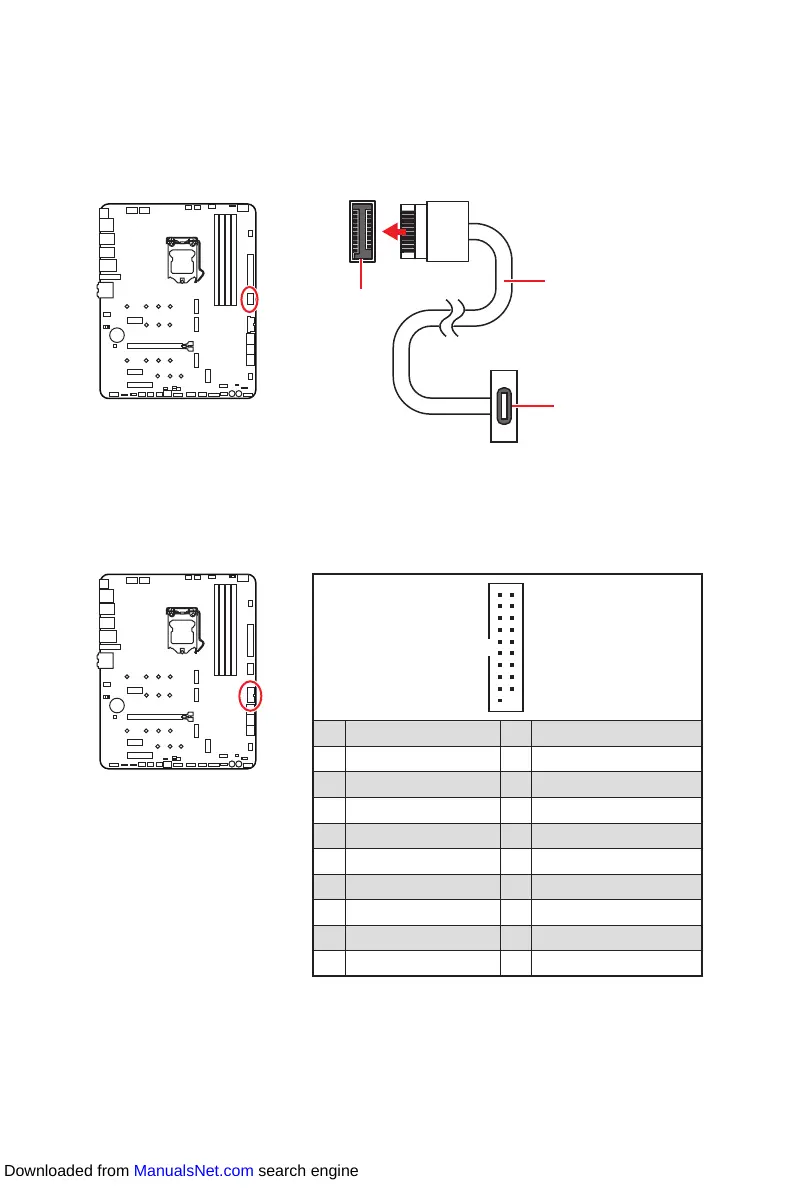

JUSB4: USB 3.2 Gen 2 Type-C Connector

panel. The connector possesses a foolproof design. When you connect the cable, be
sure to connect it with the corresponding orientation.
JUSB3: USB 3.2 Gen 1 Connector
This connector allows you to connect USB 3.2 Gen 1 5Gbps ports on the front panel.

Important
Note that the Power and Ground pins must be connected correctly to avoid possible
damage.
1
10 11
20
1 Power 11 
2 USB3_RX_DN 12 
3 USB3_RX_DP 13 Ground
4 Ground 14 
5  15 
6  16 Ground
7 Ground 17 USB3_RX_DP
8  18 USB3_RX_DN
9  19 Power
10 Ground 20 No Pin
JUSB4


the front panel
