MSI MEG Z590 UNIFY

24
Overview of Components
M2_1~4: M.2 Slots (Key M)

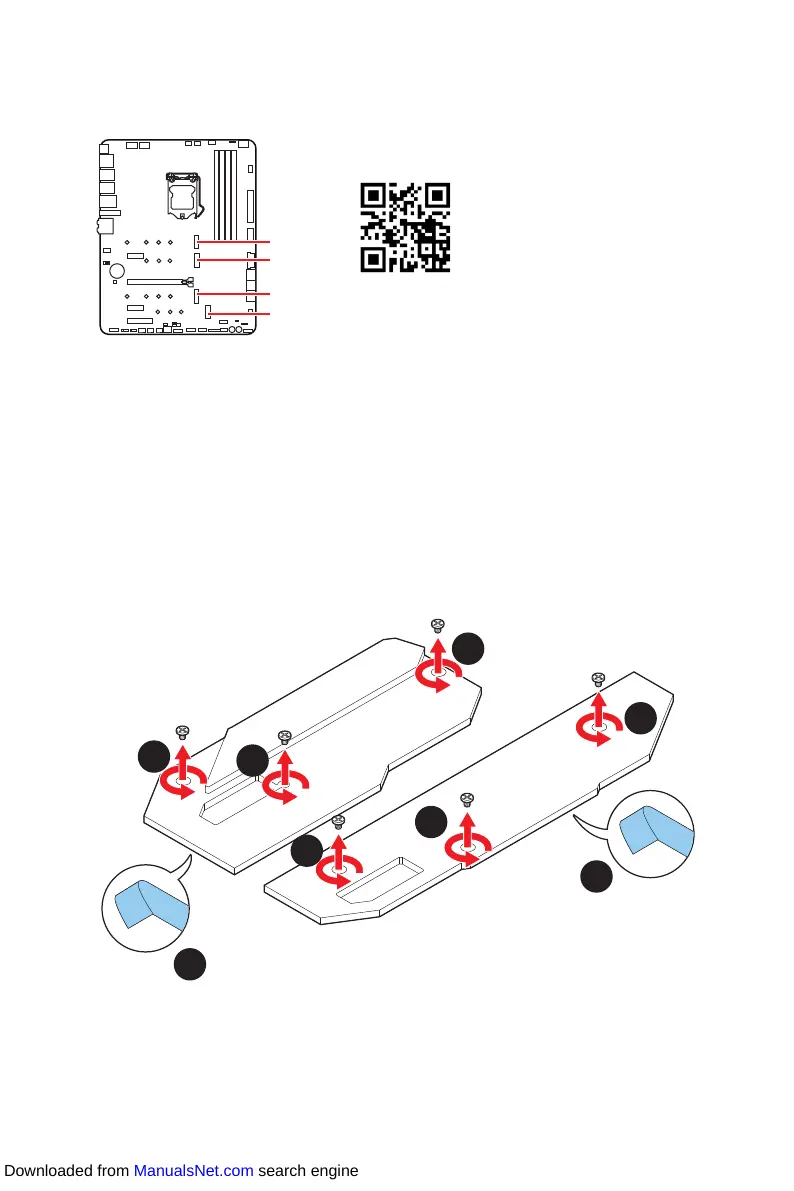

Installing M.2 module
1. Loosen the screws of M.2 SHIELD FROZR heatsink.
2. Remove the M.2 SHIELD FROZR and remove the protective films from the thermal
pads of heatsink.
2
2
1
1
1
1
1
1
M2_1
M2_2
M2_3
M2_4

Important
 
 
M2_4 slot.

Video Demonstration
Watch the video to learn how to
Install M.2 SSD.
https://youtu.be/2UeWMgjwogU


