MSI MEG Z590 UNIFY

31

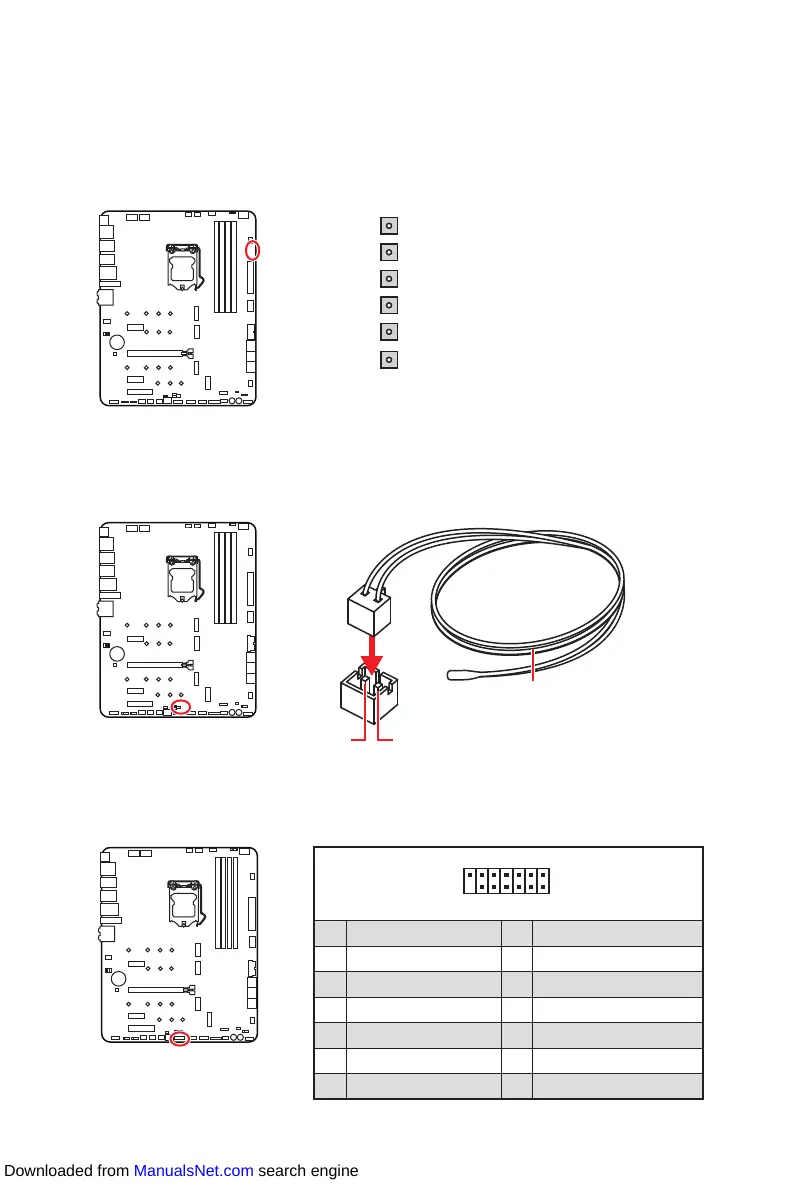

Overview of Components
JDASH1 : Tuning Controller connector

1
2 14
13
1 No Pin 2 
3  4 
5  6 Ground
7  8 
9  10 
11  12 
13  14 
V-Check Points Lite
These voltage checkpoints are used to measure the current system voltages. A


Please refer to the manual of your multimeter for more information.

GND

DRAM


T_SEN1: Thermal Sensor Connectors
This connector allows you to connect the thermistor cable and use it to monitor the
temperature of the detection point.
Thermistor cable
GND
Sense
