MSI MPG B550 User Manual

24
Компоненты материнской платы

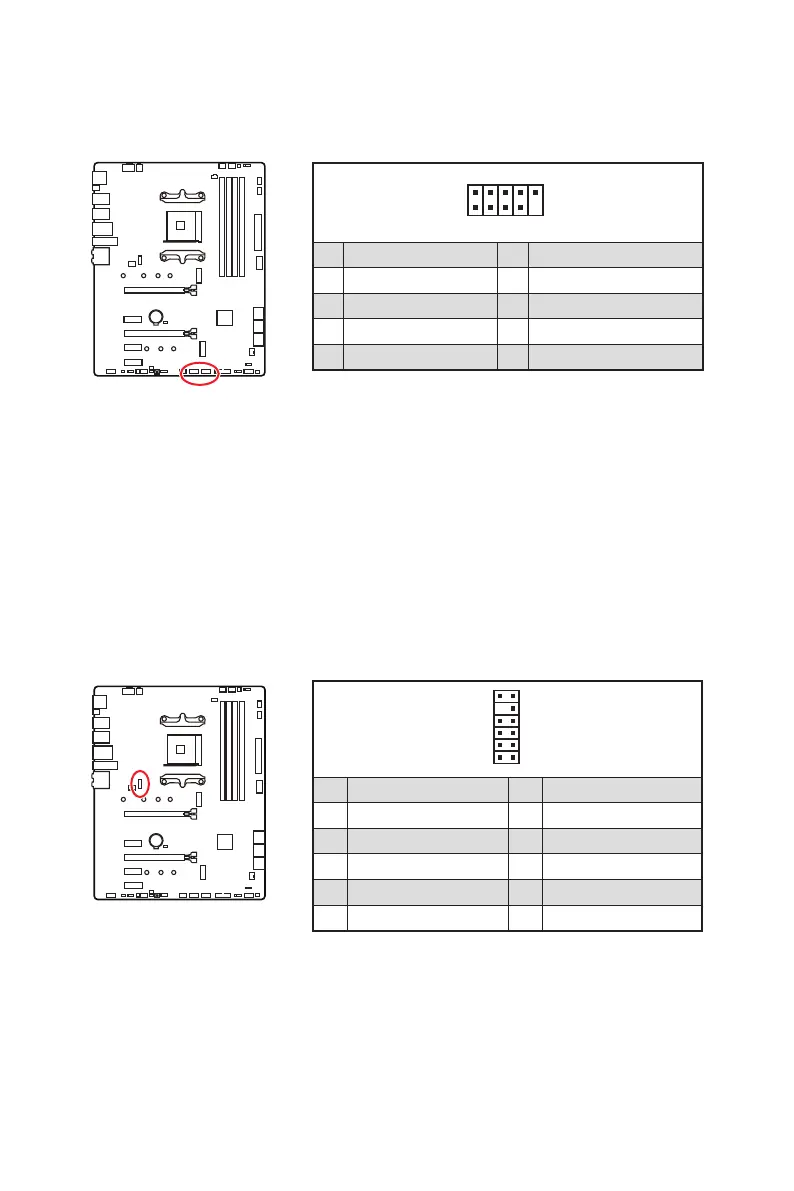

JUSB1~2: Разъемы USB 2.0


1
2 10
9
1 VCC 2 VCC
3 USB0- 4 USB1-
5 USB0+ 6 USB1+
7 Ground 8 Ground
9 No Pin 10 NC
⚠
Внимание!
∙ 

∙ 

BAT1
1
2
12
11
1 SPI Power 2 SPI Chip Select
3
Master In Slave Out (SPI Data) 4 Master In Slave In (SPI Data)
5 Reserved 6 SPI Clock
7 Ground 8 SPI Reset
9 Reserved 10 No Pin
11 Reserved 12 Interrupt Request
JTPM1: Разъем модуля ТРМ


BAT1

MSI MPG B550 Specifications

General

Form Factor	ATX
Chipset	AMD B550
Max Memory	128GB
Memory Type	DDR4
M.2 Slots	2
SATA Ports	6
Socket	AM4
Memory Slots	4
Memory Speed	4400MHz (OC)
Network	2.5G LAN
Wi-Fi	Wi-Fi 6 (802.11ax)
Bluetooth	Bluetooth 5.1
RGB Support	Mystic Light
