MSI MPG B760I EDGE WIFI DDR4 User Manual

28
M2_1~2 : Slots M.2 (Touche M)
M2_1

Important
La technologie Intel® RST supporte uniquement un SSD M.2 PCIe avec une mémoire
ROM UEFI.
M2_2

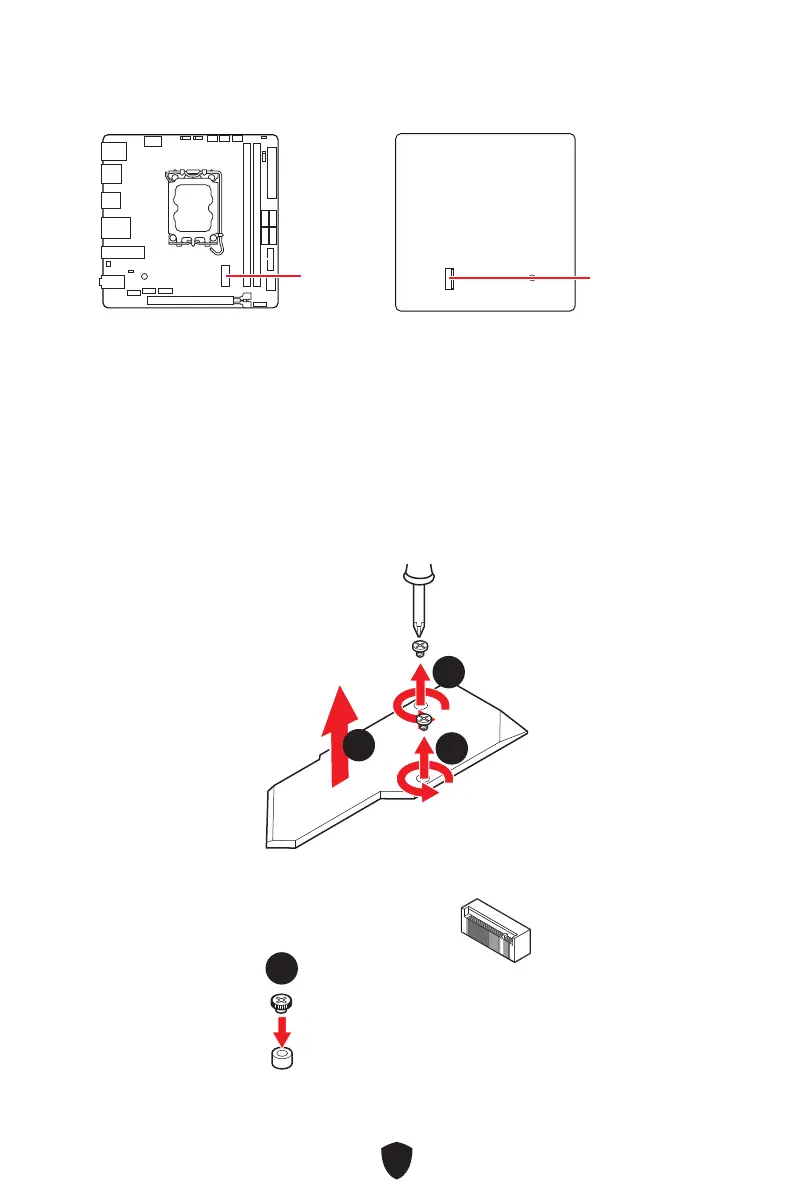

Installation du module M.2 dans le slot M2_1
1. Desserrez les vis de la plaque M.2 Shield Frozr.
2. Soulevez la plaque M.2 Shield Frozr et retirez-la.
11
11
22
3. Fixez l’entretoise M.2 fournie.
33

MSI MPG B760I EDGE WIFI DDR4 Specifications

General

Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium Gold
Supported processor sockets	LGA 1700
Maximum number of SMP processors	1
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	5333, 5200, 5066, 5000, 4800, 4600, 4533, 4400, 4266, 4000, 3866, 3733, 3600, 3466, 3333, 3200, 3000, 2933, 2800, 2666, 2400, 2133 MHz
Supported memory clock speed (max)	5333 MHz
Wi-Fi standards	802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth version	5.3
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
Number of SATA III connectors	4
DisplayPort version	1.4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	0
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	M.2, SATA III
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
System Management BIOS (SMBIOS) version	3.5
Parallel processing technology support	-
Audio chip	Realtek ALC897
Component for	PC
Power source type	ATX
Motherboard chipset	Intel B760
Audio output channels	7.1 channels
Motherboard form factor	mini ATX
Windows operating systems supported	Windows 10, Windows 11

Weight and Dimensions

Width	170 mm
