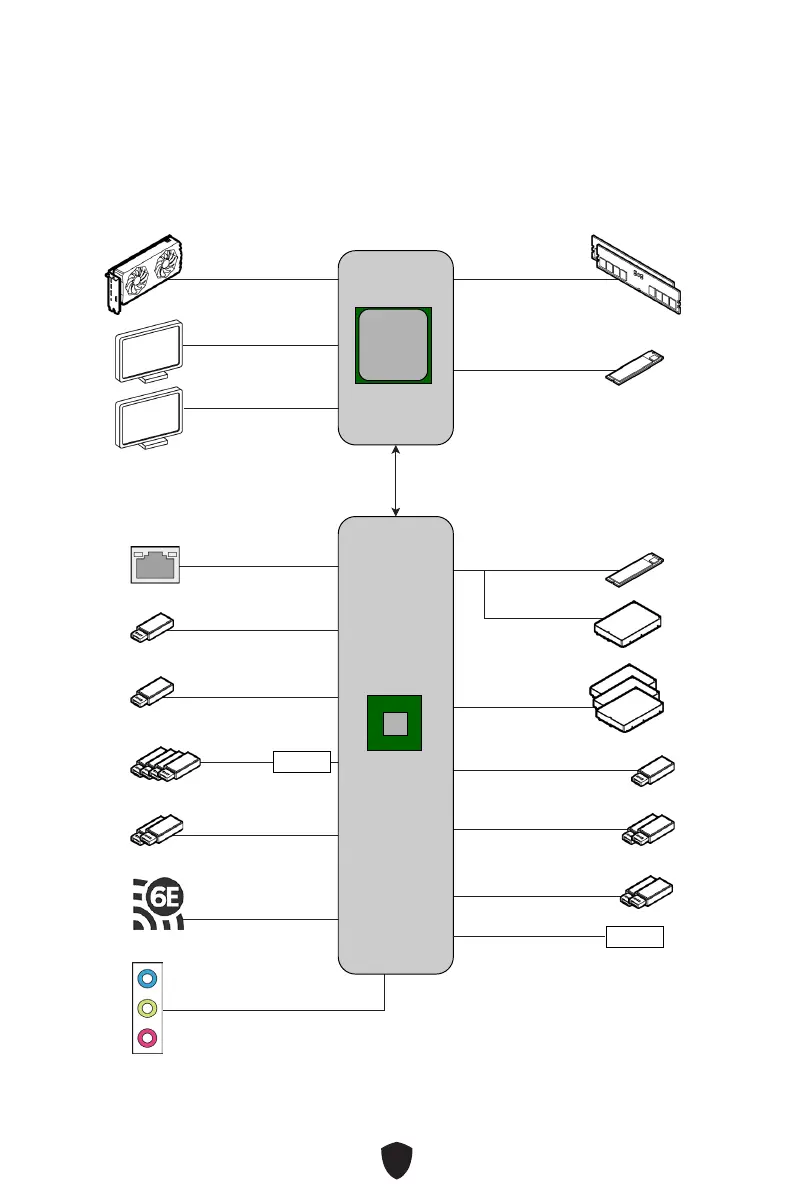

Block Diagram
MPG B760I EDGE WIFI DDR4
PCIe 5.0x16 PCI_E1
DDR4
DIMM A1/A2
GEN4 x4 M.2_1
(PCIe Only)
USB3.2 Gen2 10Gbps
(Type-A)
REALTEK/RTL8125BG
SATA_5_6_7
WiFi 6E
PCH
REALTEK/ALC897
CPU
PCIE x8
GEN4 x4 M.2_2
(PCIe + SATA)
GL3523
USB3.2 Gen 1 5Gbps
(Type-A)
USB3.2 Gen2 10Gbps
(Type-C)
USB2.0
(Front Type-A)
SPI
USB3.2 Gen 1 5Gbps
(Front Type-A)
HDMI
Display Port
SATA_8
USB3.2 Gen2 10Gbps
(Front Type-C)
USB2.0
(Type-A)
