30
Overview of Components

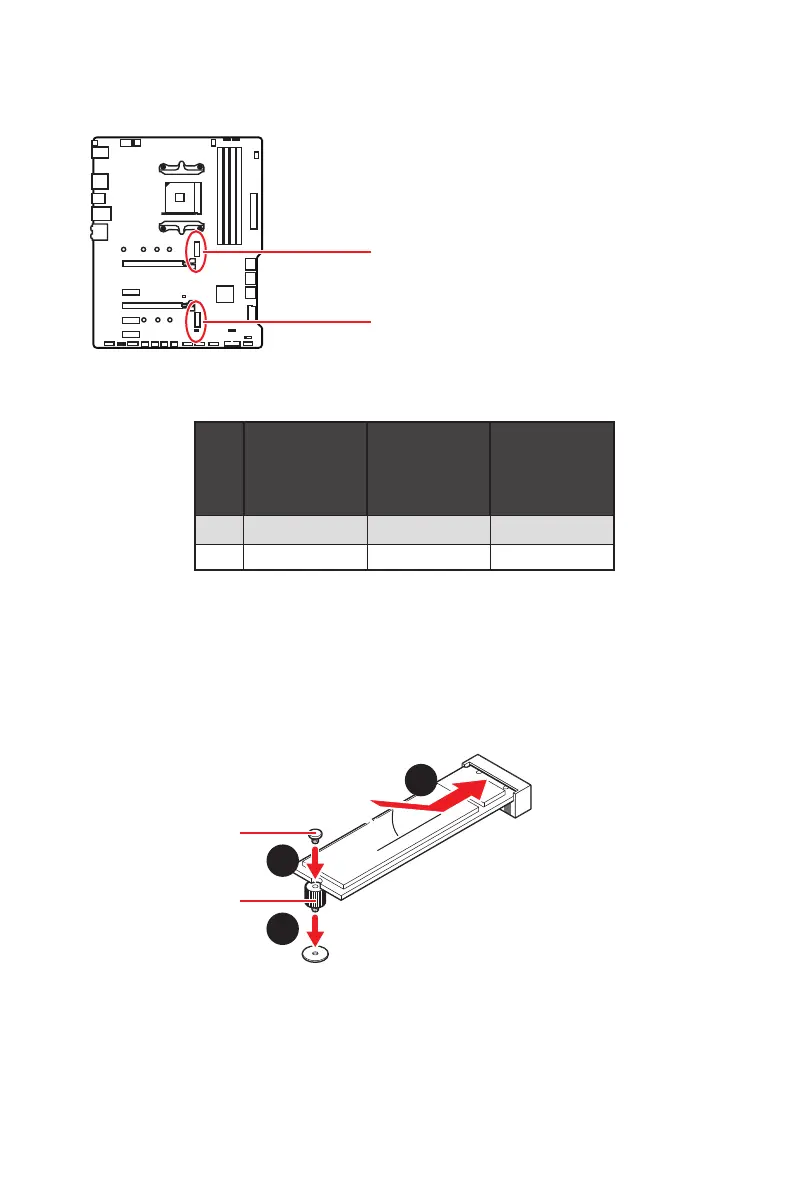

M2_1~2: M.2 Slots (Key M)
M2_1
M2_2
The following table describes the relationship between the M.2 slots and the PCIe
bandwidth of the processors.
Slots
3rd Gen AMD
Ryzen™
2nd Gen AMD
Ryzen™
Ryzen™ with
Radeon™ Vega
Graphics and 2nd Gen
AMD Ryzen™ with
Radeon™ Graphics
M2_1
PCIe 4.0 x4 PCIe 3.0 x4 PCIe 3.0 x4
M2_2
PCIe 3.0 x4 PCIe 3.0 x4 PCIe 3.0 x4
M.2 installation
1. Move and fasten the M.2 standoff to the appropriate position for your M.2 SSD.
2. Insert your M.2 SSD into the M.2 slot at a 30-degree angle.
3. Secure the M.2 SSD in place with the 8.5H M.2 screw provided with motherboard
package.
30º30º
1
3
8.5H M.2 screw
M.2 standoff
2
