MSI MPG X570-A PRO User Manual

6
Quick Start
HDD LED
RESET SW

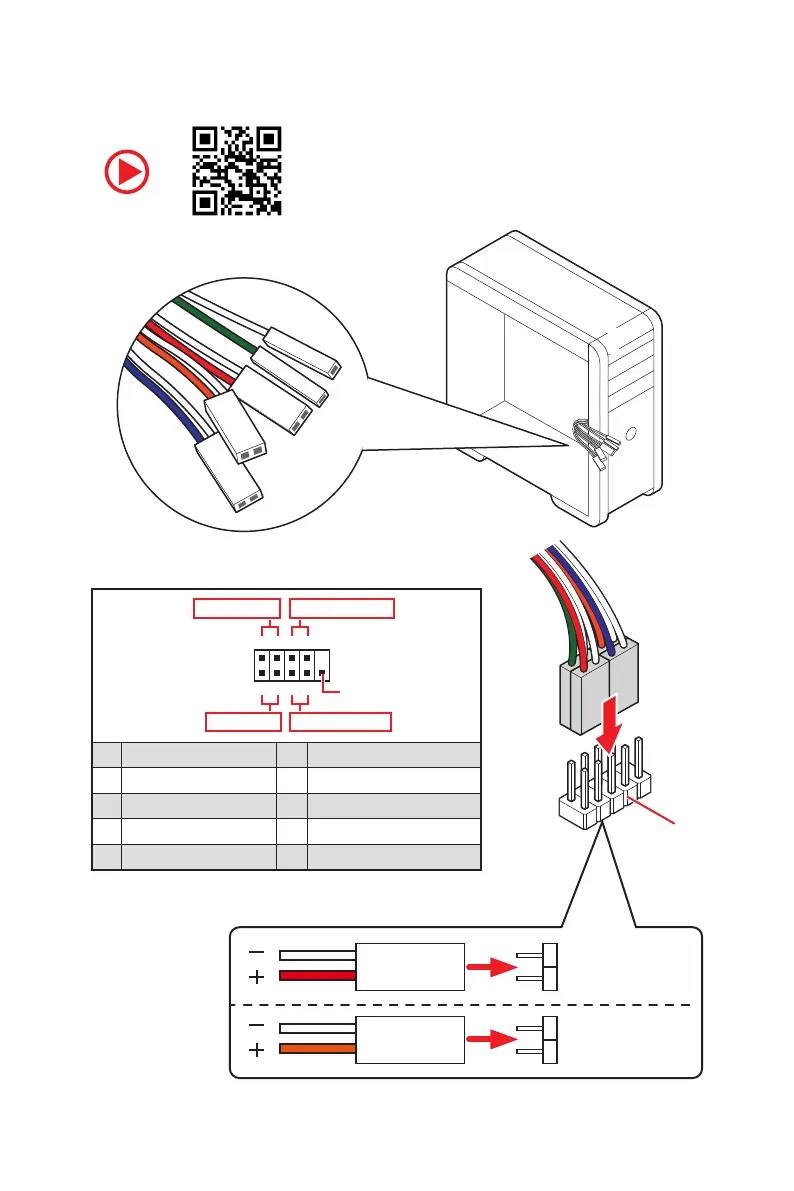

Connecting the Front Panel Header
http://youtu.be/DPELIdVNZUI
JFP1
HDD LED
HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED
1
2 10
9
+
+
+- -- -
+
Power LED
HDD LED Reset Switch
Reserved
Power Switch
JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
RESET SW
POWER SW
POWER LED+
POWER LED-
HDD LED

MSI MPG X570-A PRO Specifications

General

Chipset	AMD X570
CPU Socket	AM4
Form Factor	ATX
Memory Slots	4
Max Memory	128 GB
SATA Ports	6
LAN	Realtek RTL8111H Gigabit LAN
RAID Support	RAID 0, 1, 10
Multi-GPU Support	AMD CrossFire
Memory Speed	DDR4 4400MHz (OC)
M.2 Slots	2 x M.2
Audio	Realtek ALC1220
PCIe Slots	2 x PCIe 4.0 x16, 2 x PCIe 4.0 x1
USB Ports	2 x USB 3.2 Gen 2 (1 Type-A, 1 Type-C), 8 x USB 3.2 Gen 1 (4 on back panel, 4 via internal connectors), 6 x USB 2.0
