MSI MPG X570-A PRO User Manual

31

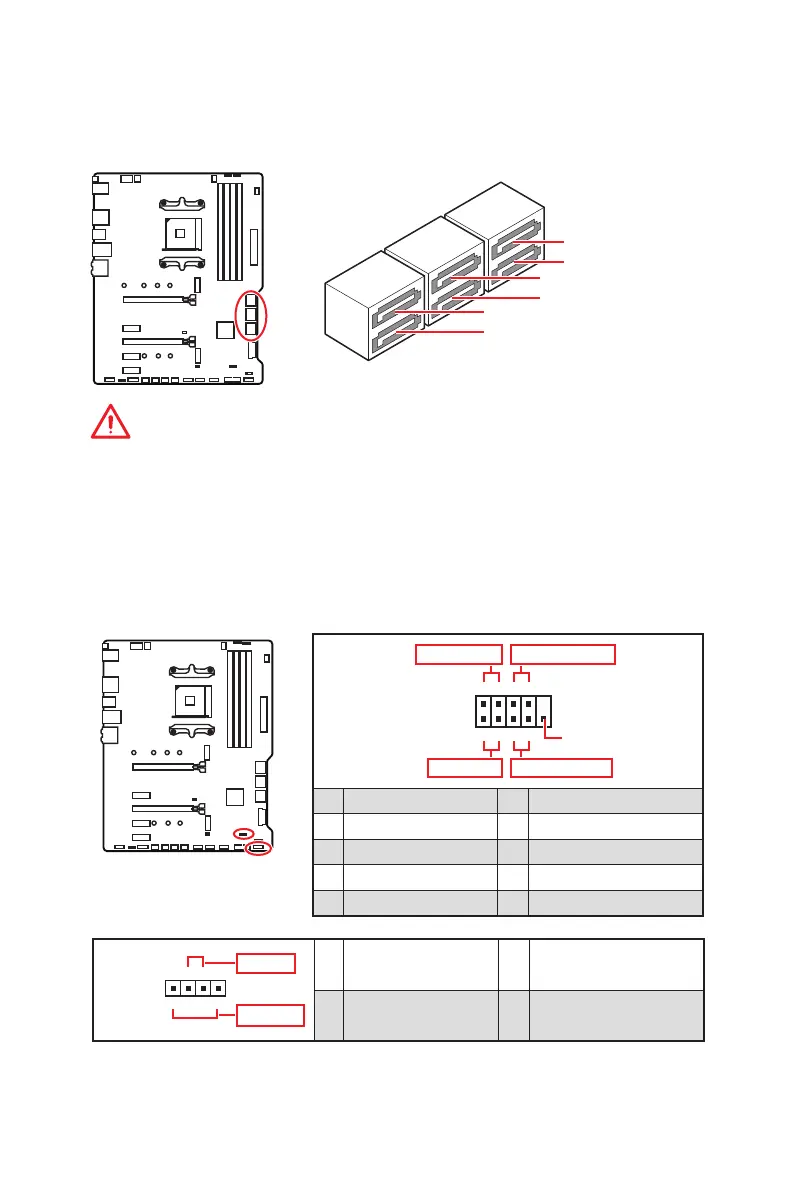

Overview of Components
JFP1, JFP2: Front Panel Connectors
These connectors connect to the switches and LEDs on the front panel.
1
2 10
9
+
+
+- -- -
+
Power LED
HDD LED Reset Switch
Reserved
Power Switch
JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
1
JFP2
+
+
-
-
Speaker
Buzzer
1 Speaker - 2 Buzzer +
3 Buzzer - 4 Speaker +
SATA1~6: SATA 6Gb/s Connectors
These connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device.
Important
y Please do not fold the SATA cable at a 90-degree angle. Data loss may result during
transmission otherwise.
y SATA cables have identical plugs on either sides of the cable. However, it is
recommended that the flat connector be connected to the motherboard for space
saving purposes.
SATA5
SATA3
SATA6
SATA4
SATA1
SATA2

MSI MPG X570-A PRO Specifications

General

Chipset	AMD X570
CPU Socket	AM4
Form Factor	ATX
Memory Slots	4
Max Memory	128 GB
SATA Ports	6
LAN	Realtek RTL8111H Gigabit LAN
RAID Support	RAID 0, 1, 10
Multi-GPU Support	AMD CrossFire
Memory Speed	DDR4 4400MHz (OC)
M.2 Slots	2 x M.2
Audio	Realtek ALC1220
PCIe Slots	2 x PCIe 4.0 x16, 2 x PCIe 4.0 x1
USB Ports	2 x USB 3.2 Gen 2 (1 Type-A, 1 Type-C), 8 x USB 3.2 Gen 1 (4 on back panel, 4 via internal connectors), 6 x USB 2.0
