Overview of Components

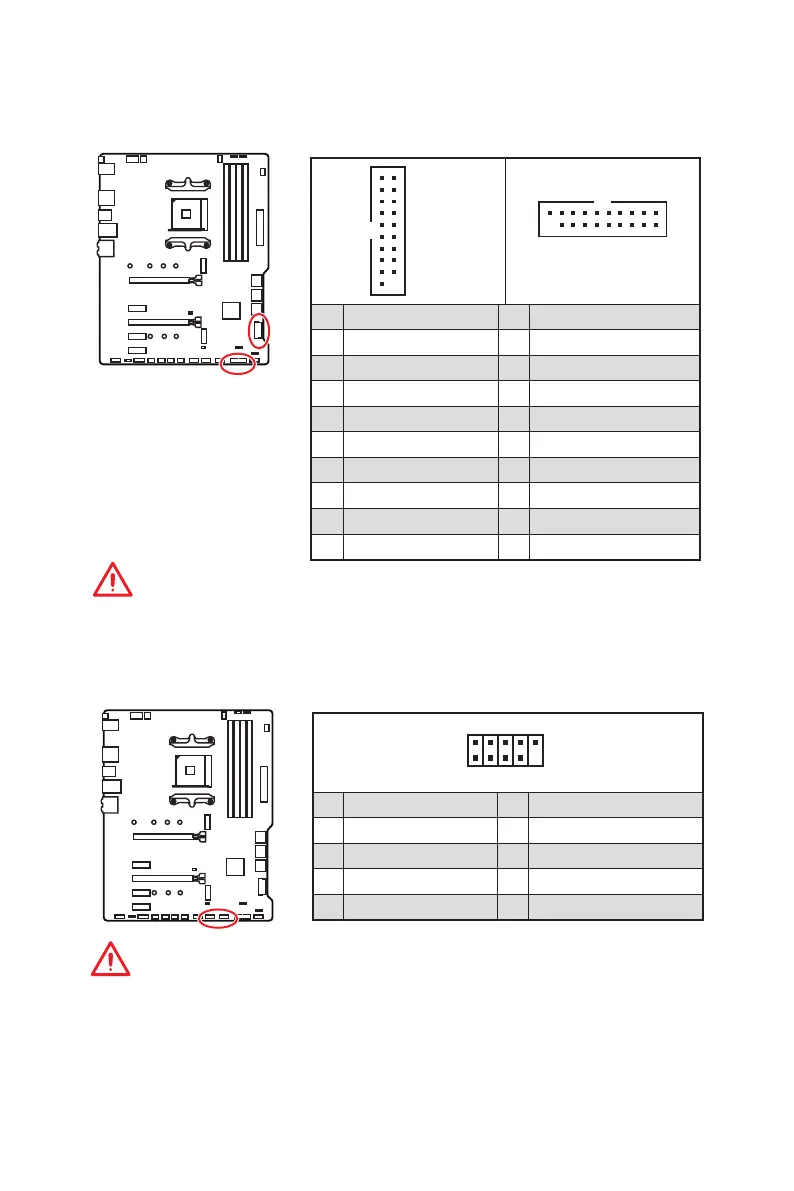

JUSB3~4: USB 3.2 Gen1 Connectors
These connectors allow you to connect USB 3.2 Gen1 ports on the front panel.
Important
Note that the Power and Ground pins must be connected correctly to avoid possible
damage.
1
10 11
20
JUSB4
1 10
1120
JUSB3
1 Power 11 USB2.0+
2 USB3_RX_DN 12 USB2.0-
3 USB3_RX_DP 13 Ground
4 Ground 14 USB3_TX_C_DP
5 USB3_TX_C_DN 15 USB3_TX_C_DN
6 USB3_TX_C_DP 16 Ground
7 Ground 17 USB3_RX_DP
8 USB2.0- 18 USB3_RX_DN
9 USB2.0+ 19 Power
10 NC 20 No Pin
JUSB1~2: USB 2.0 Connectors
These connectors allow you to connect USB 2.0 ports on the front panel.
1
2 10
9
1 VCC 2 VCC
3 USB0- 4 USB1-
5 USB0+ 6 USB1+
7 Ground 8 Ground
9 No Pin 10 NC
Important
y Note that the VCC and Ground pins must be connected correctly to avoid possible
damage.
y In order to recharge your iPad,iPhone and iPod through USB ports, please install
MSI
®
DRAGON CENTER utility.

MSI MPG X570-A PRO Specifications

General

Chipset	AMD X570
CPU Socket	AM4
Form Factor	ATX
Memory Slots	4
Max Memory	128 GB
SATA Ports	6
LAN	Realtek RTL8111H Gigabit LAN
RAID Support	RAID 0, 1, 10
Multi-GPU Support	AMD CrossFire
Memory Speed	DDR4 4400MHz (OC)
M.2 Slots	2 x M.2
Audio	Realtek ALC1220
PCIe Slots	2 x PCIe 4.0 x16, 2 x PCIe 4.0 x1
USB Ports	2 x USB 3.2 Gen 2 (1 Type-A, 1 Type-C), 8 x USB 3.2 Gen 1 (4 on back panel, 4 via internal connectors), 6 x USB 2.0
