Overview of Components
Important
y An JRGB connector supports up to 2 meters continuous 5050 RGB LED strips
(12V/G/R/B) with the maximum power rating of 3A (12V).
y Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing the RGB LED strip.
y Please use MSI’s software to control the extended LED strip.

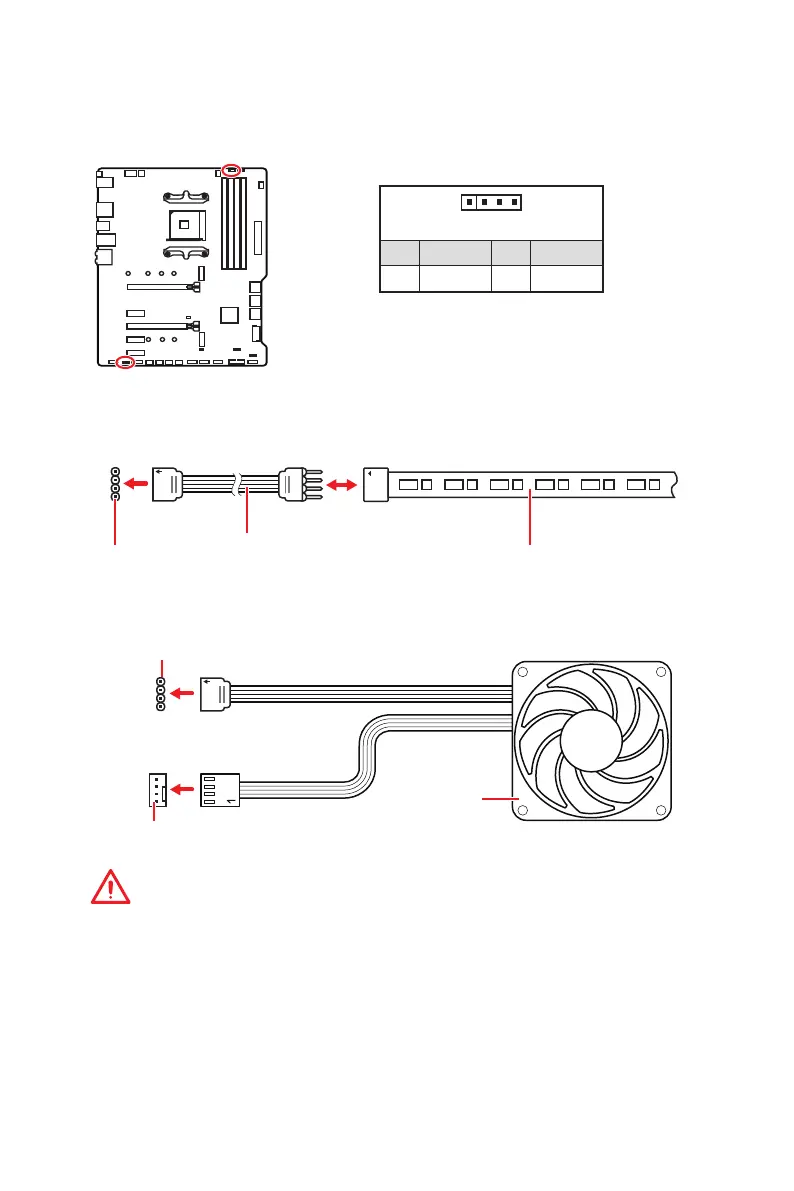

JRGB1~2: RGB LED connectors
The JRGB connectors allow you to connect the 5050 RGB LED strips 12V.
1
G
R
B
JRGB
connector
RGB extension
cable (optional)
5050 RGB LED strips 12V
1
1 +12V 2 G
3 R 4 B
RGB LED Strip Connection
1
1
G
R
B
JRGB connector
System Fan connector
RGB LED Fan Connection
RGB LED Fan

MSI MPG X570-A PRO Specifications

General

Chipset	AMD X570
CPU Socket	AM4
Form Factor	ATX
Memory Slots	4
Max Memory	128 GB
SATA Ports	6
LAN	Realtek RTL8111H Gigabit LAN
RAID Support	RAID 0, 1, 10
Multi-GPU Support	AMD CrossFire
Memory Speed	DDR4 4400MHz (OC)
M.2 Slots	2 x M.2
Audio	Realtek ALC1220
PCIe Slots	2 x PCIe 4.0 x16, 2 x PCIe 4.0 x1
USB Ports	2 x USB 3.2 Gen 2 (1 Type-A, 1 Type-C), 8 x USB 3.2 Gen 1 (4 on back panel, 4 via internal connectors), 6 x USB 2.0
