MSI MPG X570S EDGE MAX WIFI

23
󴚮󸋖

󳲜󶬖
1

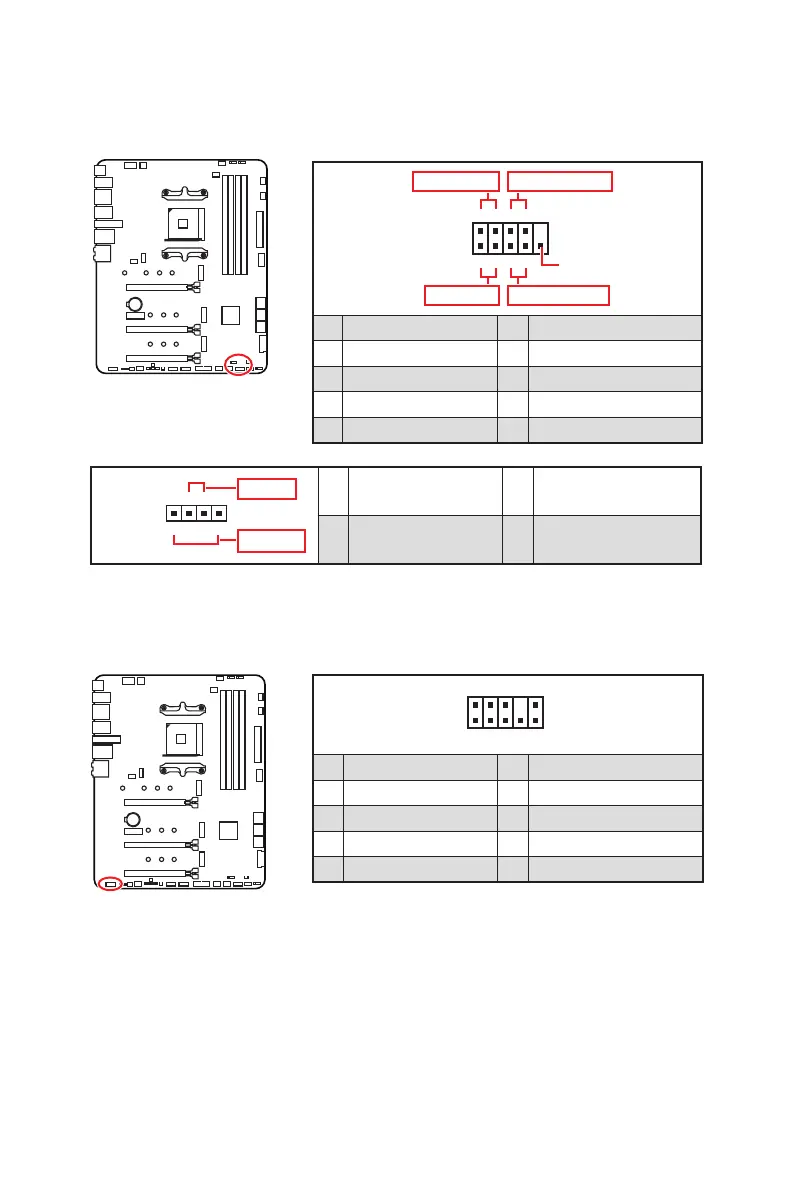

JFP2
+
+


Speaker
Buzzer
1  2 Buzzer +
3  4 Speaker +
1
2 10
9
+
+
+  
+
Power LED
HDD LED Reset Switch
Reserved
Power Switch
JFP1
1 HDD LED + 2 Power LED +
3  4 
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin

󳲜󶬖
1
2 10
9
1 MIC L 2 Ground
3 MIC R 4 NC
5 Head Phone R 6 MIC Detection
7 SENSE_SEND 8 No Pin
9 Head Phone L 10 Head Phone Detection
