MSI MPG X570S EDGE MAX WIFI User Manual

28

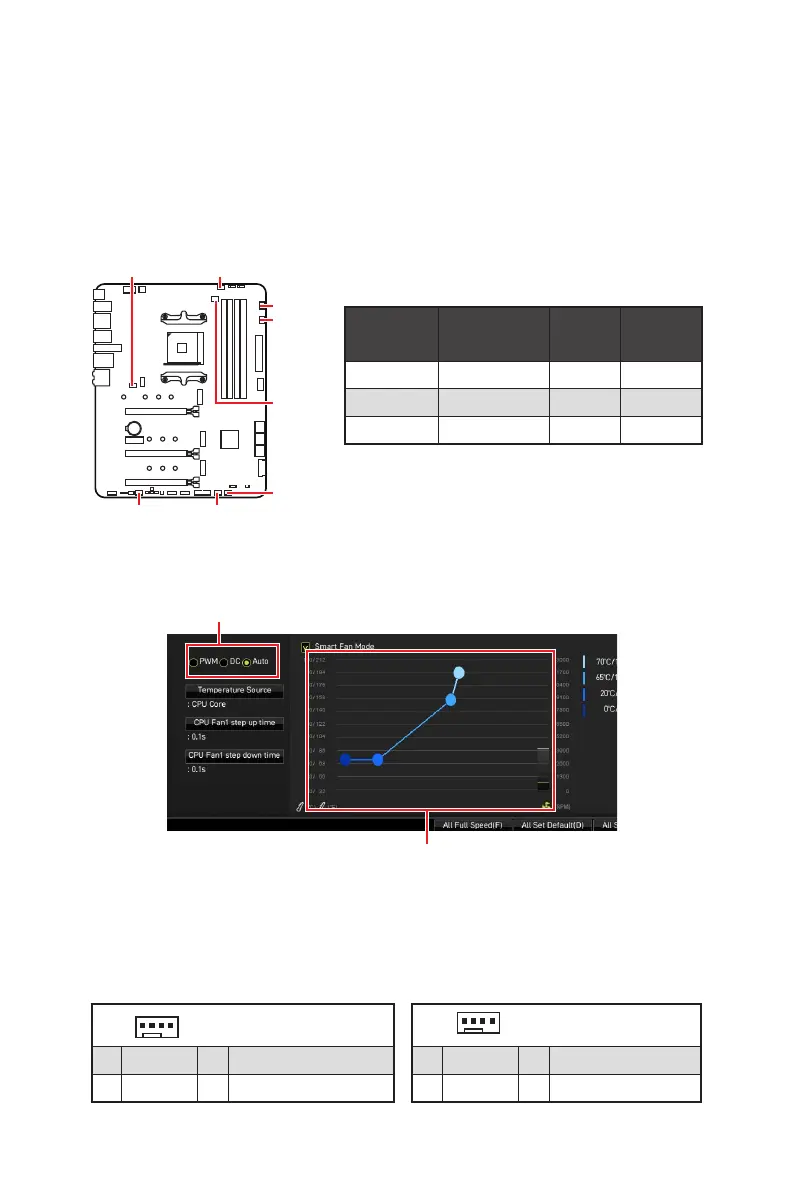

Übersicht der Komponenten









Anschluss
Standard-

Max.
Strom
Max.
Leistung
CPU_FAN1 Auto Modus 3A 36W
PUMP_FAN1 PWM Modus 3A 36W
SYS_FAN1~6 DC Modus 2A 24W
PUMP_FAN1
SYS_FAN1
SYS_FAN2
SYS_FAN3
SYS_FAN4SYS_FAN5
CPU_FAN1
SYS_FAN6

Wichtig



Sie können unter 

Wählen Sie den PWM


Temperatur.
1

1 Ground 2 +12V
3 Sense 4 Speed Control Signal
1

1 Ground 2 Voltage Control
3 Sense 4 NC

MSI MPG X570S EDGE MAX WIFI Specifications

General

Audio chip	Realtek ALC4080
Component for	PC
Motherboard chipset	AMD X570
Audio output channels	7.1 channels
Motherboard form factor	ATX
Number of mounting holes	9
Motherboard chipset family	AMD
Windows operating systems supported	Windows 10 x64
Cables included	SATA
BIOS type	-
Clear CMOS button	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Number of SATA III connectors	6
Number of M.2 (M) slots	3
LAN controller	Realtek RTL8125B
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth version	5.2
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
RAID levels	0, 1, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Parallel processing technology support	CrossFire
Memory channels	Dual-channel
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	3600, 4000, 4266, 4400, 5100, 5300 MHz
Processor socket	Socket AM4
Compatible processor series	AMD Ryzen 3, AMD Ryzen 5, AMD Ryzen 7, AMD Ryzen 9 3rd Gen, AMD Ryzen 9 5th Gen
Harmonized System (HS) code	84733020
Weight	1000 g

Weight and Dimensions

Depth	244 mm
Width	305 mm
Height	78 mm
