Installing M.2 module

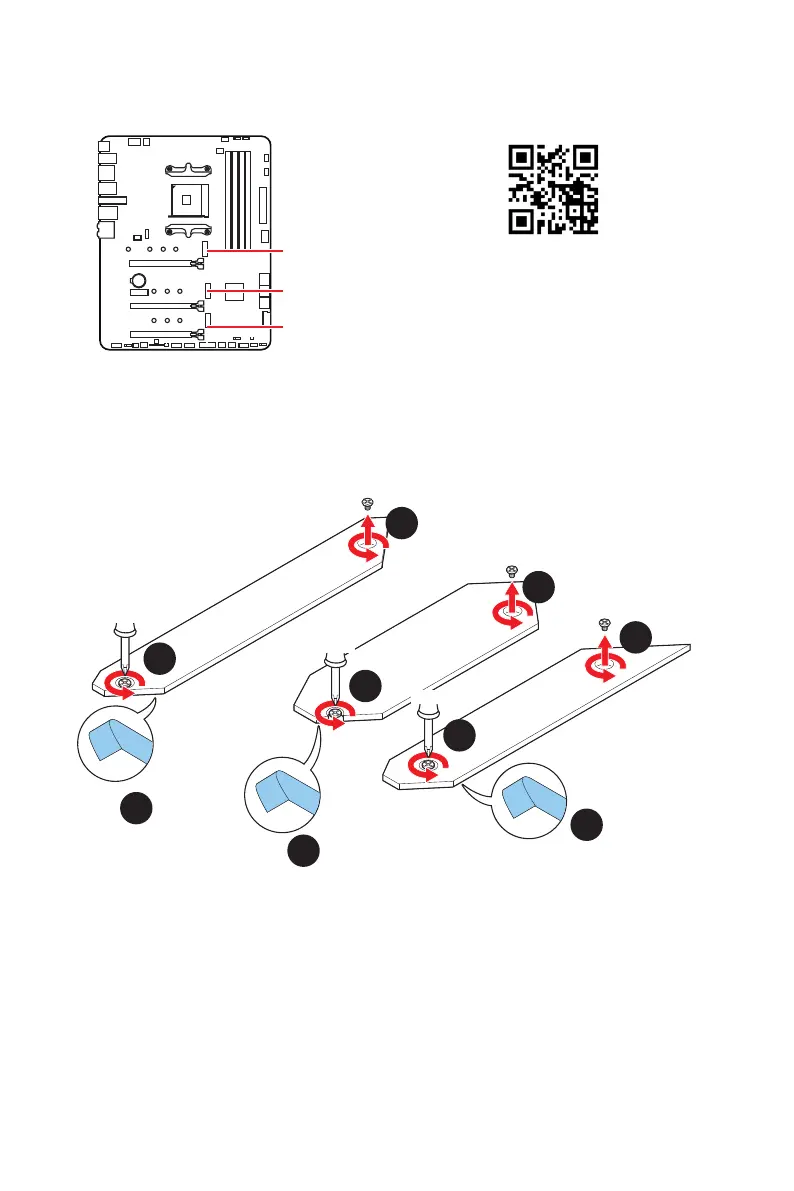

1. Loosen the screws of M.2 SHIELD FROZR heatsink.
2. Remove the M.2 SHIELD FROZR and remove the protective films from the thermal
pads.
M2_1 (CPU)
M2_2 (Chipset)
M2_3 (Chipset)

Video Demonstration
Watch the video to learn how to Install
M.2 SSD.
https://youtu.be/2UeWMgjwogU
2
2
2
1
1
1
1
1
1
M2_1
M2_2
M2_3
