MSI MPG X570S EDGE MAX WIFI

13


 

 
Button.

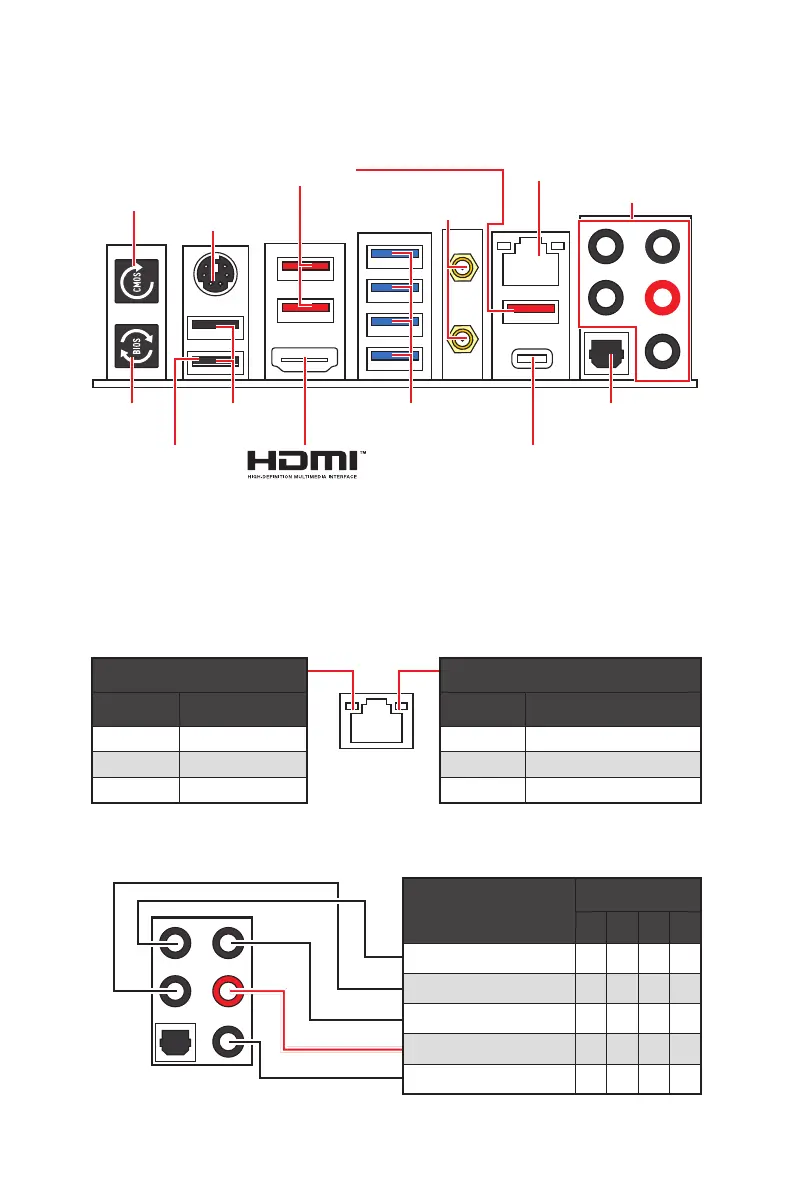

LAN Port LED Status Table
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100/1000 Mbps connection
Orange 2.5 Gbps connection
USB 3.2 Gen 2

2.5 Gbps
LAN
USB 2.0
Audio Ports

Clear CMOS
button
PS/2

connectors
USB 3.2 Gen 2

Flash BIOS
Button
Flash BIOS Port
USB 3.2 Gen 1


Audio Ports

2 4 6 8
  
Rear Speaker Out   
 
    
Mic In
: empty)
