19
Übersicht der Komponenten

DIMMA1 DIMMB1
Kanal A 
DIMMA2 DIMMB2

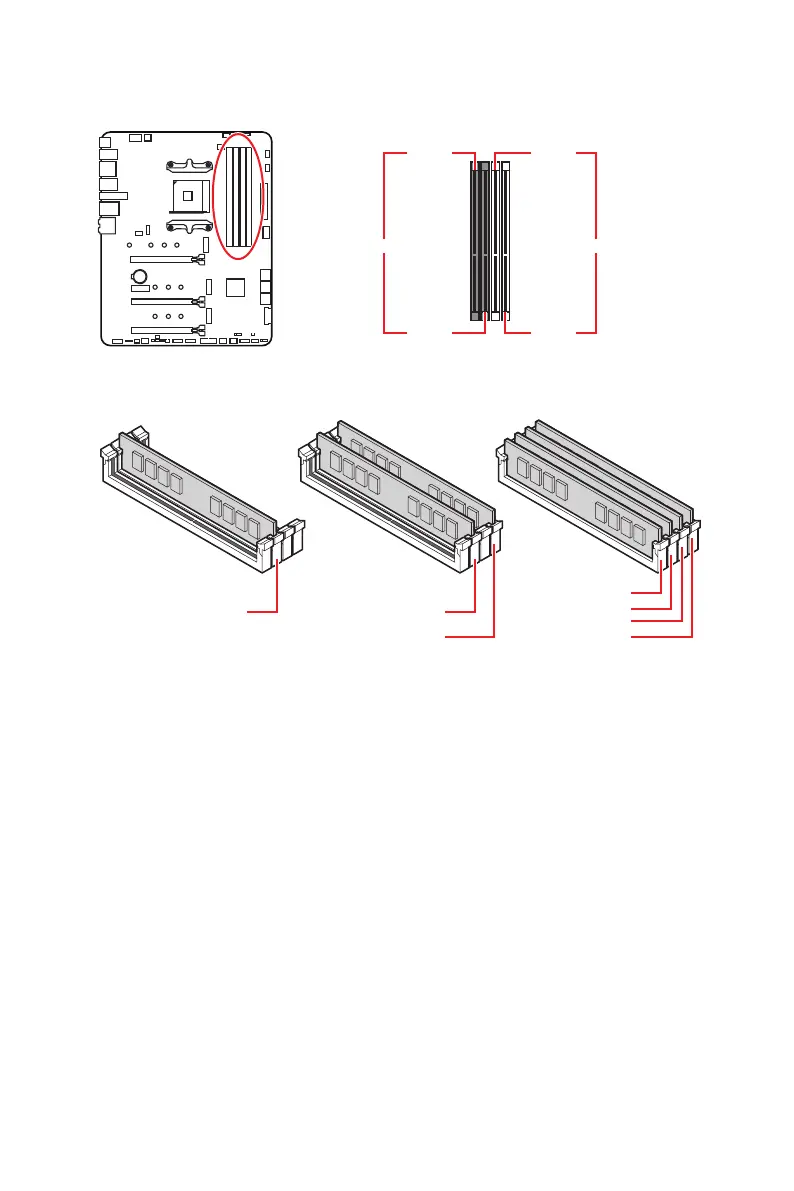

Speichermodul-Installationsempfehlung
Wichtig
DIMMA2
zuerst.




Einige Speichermodule können beim Übertakten auf einer niedrigeren Frequenz

DRAM Frequency die Speicherfrequenz ein, wenn Sie
mit der festgelegten oder einer höheren Speicherfrequenz arbeiten möchten.

des DIMMs oder beim Übertakten zu verwenden.
Die Stabilität und Kompatibilität beim Übertakten der installierten Speichermodule
sind abhängig von der installierten CPU und den installierten Geräten.

Controllers kann die Frequenz der Speichermodule im Standardzustand niedriger
sein, als der markierte Standardwert. Weitere Informationen zu kompatiblen Speicher
finden Sie unter: www.msi.com
DIMMB2 DIMMB2
DIMMB1
DIMMA2
DIMMA2
DIMMA2
DIMMA1
