Компоненты материнской платы

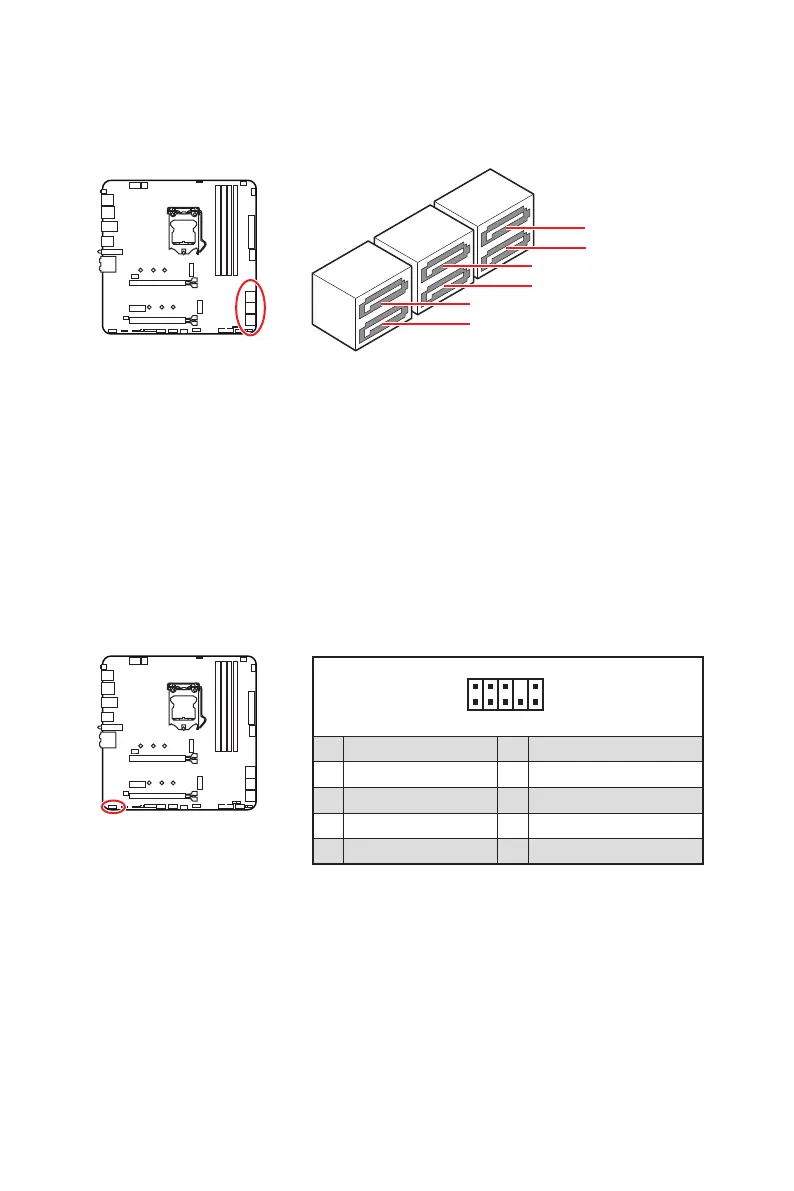

SATA1~6: Разъемы SATA 6Гб/с





SATA1

SATA3

SATA5

SATA2

SATA4

SATA6

⚠

Внимание!

∙





∙







∙



JAUD1: Разъем аудио передней панели



2 10

1 MIC L 2 Ground

3 MIC R 4 NC

5 Head Phone R 6 MIC Detection

7 SENSE_SEND 8 No Pin

9 Head Phone L 10 Head Phone Detection
