Package contents
Audio Ports Configuration
Audio Ports
Channel
2 4 6 8
Center/ Sub-woofer Out  
Rear Speaker Out   
Line-In/ Side Speaker Out 
Line-Out/ Front Speaker Out    
Mic In
Blank: empty)
LAN Port LED Status Table
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100/1000 Mbps connection
Orange 2.5 Gbps connection

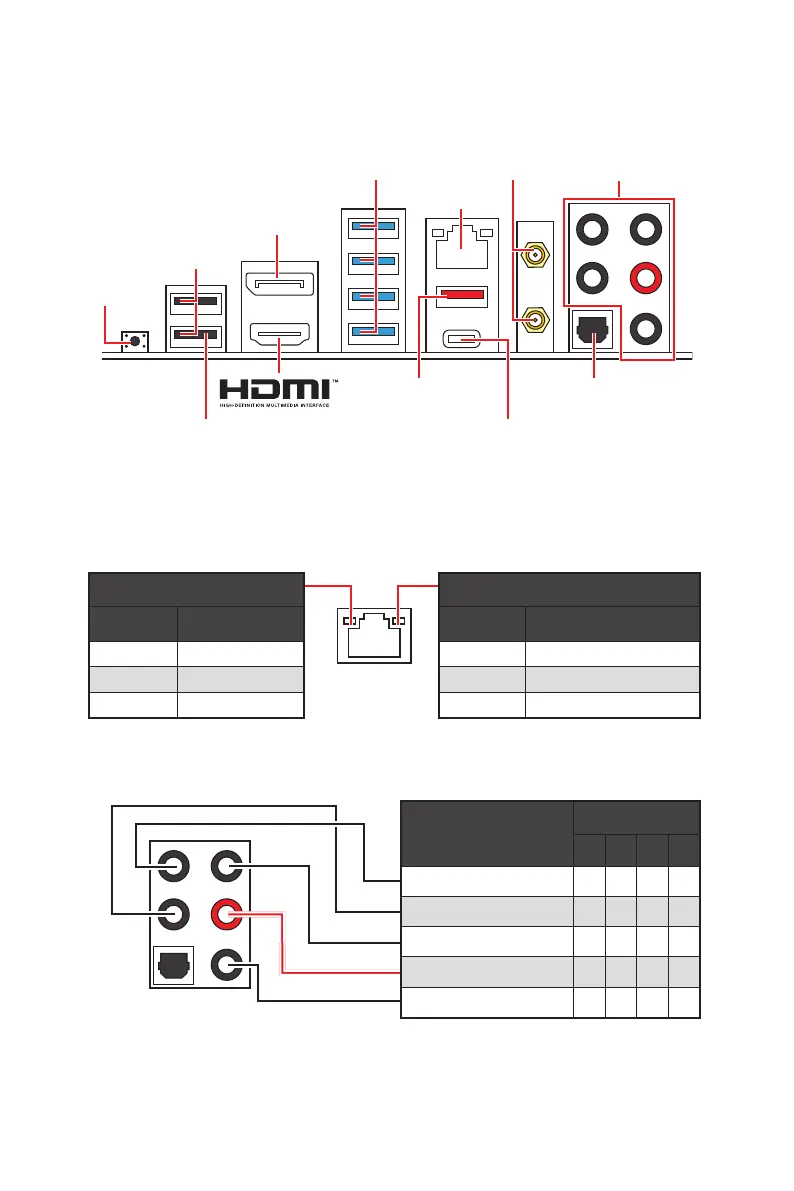

Rear I/O Panel
USB 3.2 Gen 2
10Gbps Type-A
2.5 Gbps LAN
Audio Ports
Optical
S/PDIF-Out
DisplayPort
USB 3.2 Gen 1
5Gbps Type-A
Flash BIOS
Button
USB 2.0
USB 3.2 Gen 2x2
20Gbps Type-C
Wi-Fi Antenna
connectors
Flash BIOS Port
∙ Flash BIOS Port/ Button - Please refer to page 36 for Updating BIOS with Flash BIOS
Button.

MSI MPG Z590M Specifications

General

Brand	MSI
Model	MPG Z590M
Category	Motherboard
Language	English
