MSI MPG Z590M User Manual

25

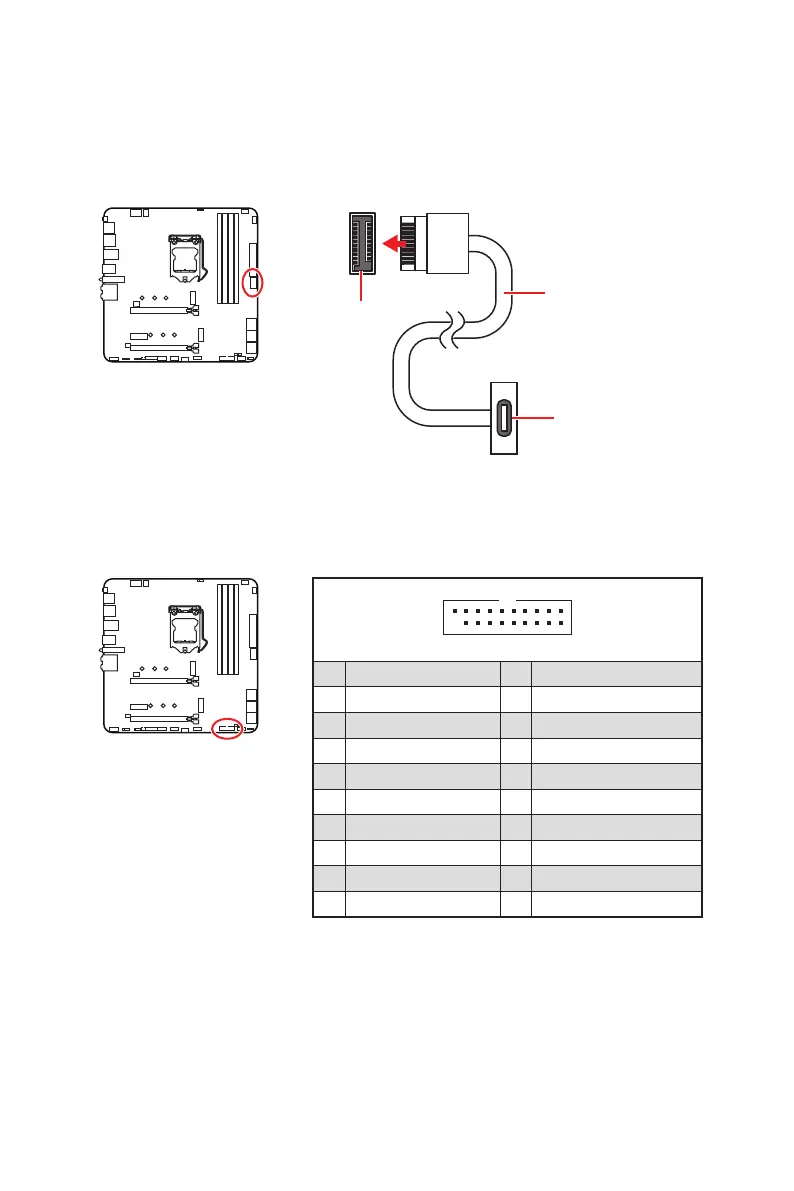

Компоненты материнской платы
JUSB4: Разъем USB 3.2 Gen 2 Type-C




JUSB3: Разъем USB 3.2 Gen 1


⚠
Внимание!


1 10
11
20
1 Power 11 USB2.0+
2 USB3_RX_DN 12 USB2.0-
3 USB3_RX_DP 13 Ground
4 Ground 14 USB3_TX_C_DP
5 USB3_TX_C_DN 15 USB3_TX_C_DN
6 USB3_TX_C_DP 16 Ground
7 Ground 17 USB3_RX_DP
8 USB2.0- 18 USB3_RX_DN
9 USB2.0+ 19 Power
10 Ground 20 No Pin
JUSB4

Type-C


