MSI MPG Z690 CARBON WIFI

13

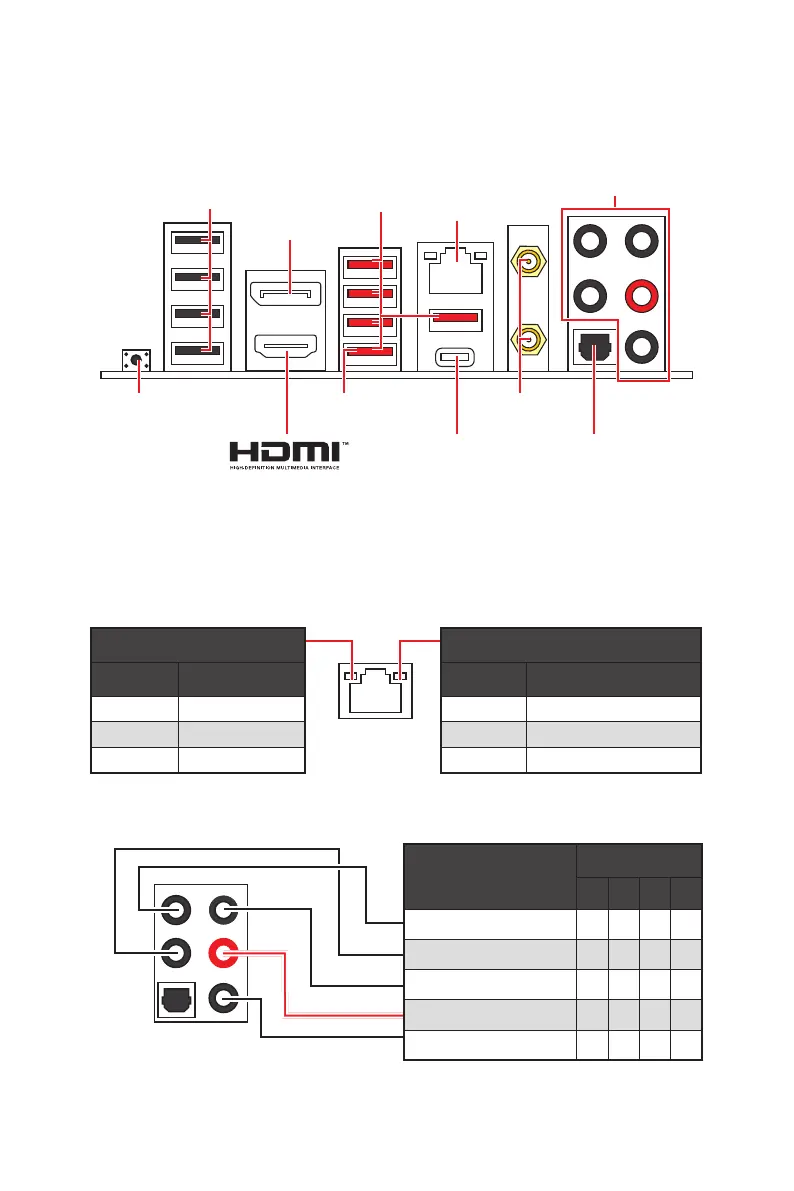

Rear I/O Panel
Audio Ports Configuration
Audio Ports
Channel
2 4 6 8
  
Rear Speaker Out   
 
    
Mic In
Blank: empty)
Rear I/O Panel
 
Button.
LAN Port LED Status Table
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100/1000 Mbps connection
Orange 2.5 Gbps connection
USB 3.2 Gen 2x2

Flash BIOS
Button
2.5Gbps
LAN

connectors
USB 2.0

USB 3.2
Gen 2
(10Gbps)

DisplayPort
Audio Ports
Optical

Flash BIOS
port
