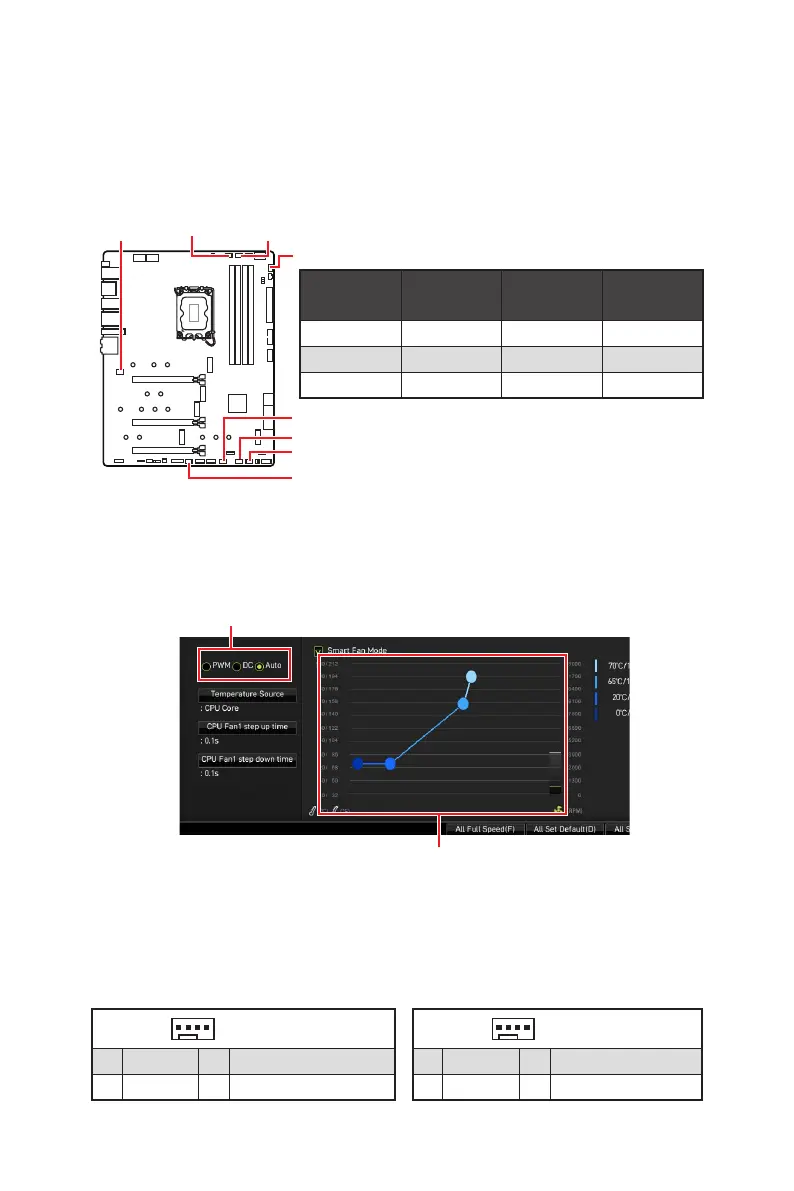

󳞅󲁗󱟧󲖬BIOS > HARDWARE MONITOR󱛉󱴻󳳺󴟜󳓑󲅈󴟜󳓑󾖞󷎨󸔩󳿒󹴴󳩴󸹄

󳐂󾖜

󸼫󳺙PWM󴟜󳓑󳨘DC󴟜󳓑



󹆢󸋘

󲖬󱴻󳳺󴟜󳓑󳖹󾖞󸕂󶅛󱥧󹴴󳩴󳋌󱢖󴨟󳍆󾖜

󹴴󳩴󸹄󳐂󵷜󵂜󸛚󺟮󾖞󱯬󸐎󳞅󴑳󳺽󴾕󳐂󸔩󳿒󹴴󳩴󸹄󳐂󾖜

󹴴󳩴󳲞󹲋󵷜󹆾󷉥󲹥󶺳

CPU_FAN1

SYS_FAN2

SYS_FAN3

SYS_FAN4

SYS_FAN5

PUMP_FAN1

SYS_FAN6

SYS_FAN1

󳲞󹲋

󹱜󸐈󹴴󳩴

󴟜󳓑

󴉷󲣴󹩚󴵍 󴉷󲣴󱸪󵢋

CPU_FAN1 󴟜󳓑 3A 36W

PUMP_FAN1 󴟜󳓑 3A 36W

SYS_FAN1~6 󴟜󳓑 1A 12W

󴟜󳓑󹆾󷉥󲹥󶺳

1 Ground 2 +12V

3 Sense 4 Speed Control Signal

󴟜󳓑󹆾󷉥󲹥󶺳

1 Ground 2 Voltage Control

3 Sense 4 NC

MSI MPG Z690 CARBON WIFI Specifications

General

Form Factor	atx
Chipset	z690
Chipset Compatibility	intel
Processor Socket	socket lga 1700
Processor Compatibility	intel, intel core i9, intel core i7, intel core i5, intel core i3
RAID	raid 0, raid 1, raid 5
Multi-GPU	crossfire
Memory Type	ddr5
Memory Speeds	6666
SATA Connectors	6x sata 6g
Wireless Standard	ax
Wireless Networking Standard	wi-fi 6e
Wireless Connectivity	bluetooth, wi-fi
USB Ports	6 x usb-a 3.2, 1 x usb-c 3.2, 4 x usb-a 2.0
Audio Ports	1x front audio (jaud)
Audio Channels	8
M.2 Slots	5
