Overview of Components

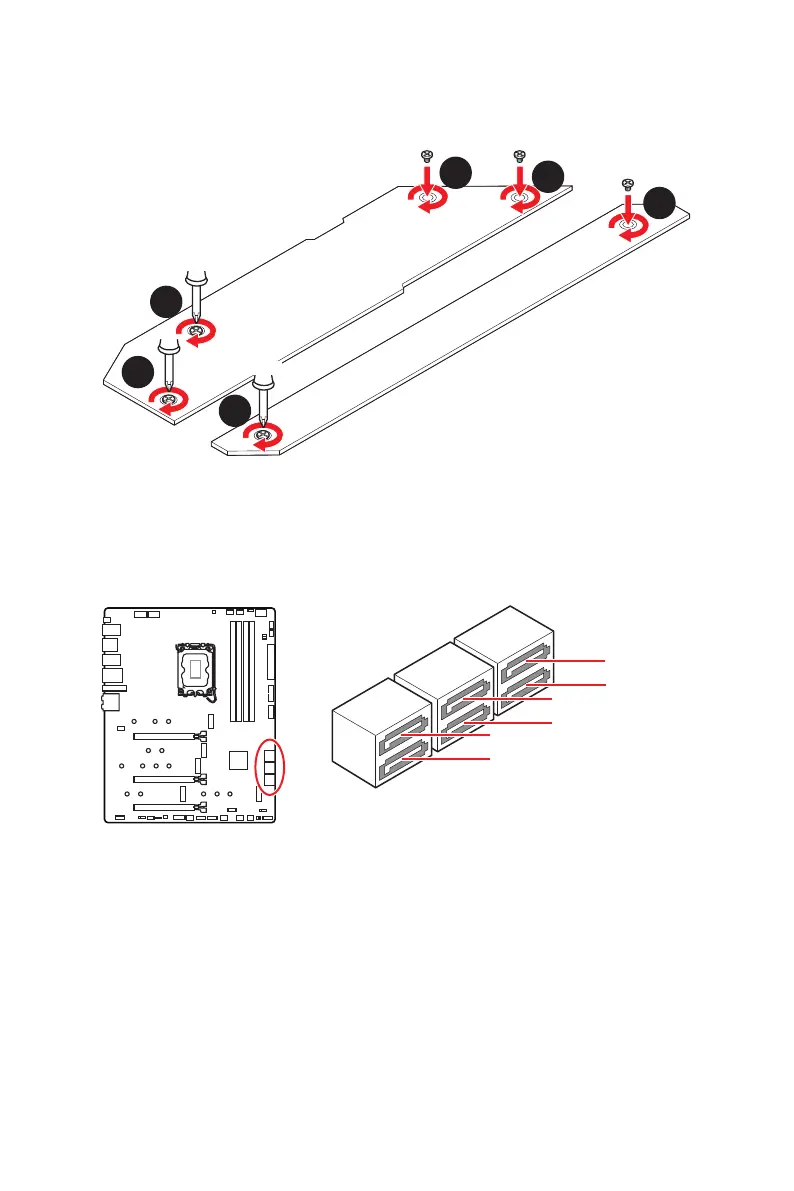

6. Put the M.2 SHIELD FROZR heatsink back in place and secure it.
SATA5~8 & SATAA~B: SATA 6Gb/s Connectors
These connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device.
SATAA
SATA5
SATA7
SATAB
SATA6
SATA8

Important
 
transmission otherwise.
 SATA cables have identical plugs on either sides of the cable. However, it is
recommended that the flat connector be connected to the motherboard for space
saving purposes.
 SATA7 will be unavailable when installing M.2 SATA SSD in the M2_4 slot.
6
6
6
6
6
6

MSI MPG Z690 CARBON WIFI Specifications

General

Form Factor	atx
Chipset	z690
Chipset Compatibility	intel
Processor Socket	socket lga 1700
Processor Compatibility	intel, intel core i9, intel core i7, intel core i5, intel core i3
RAID	raid 0, raid 1, raid 5
Multi-GPU	crossfire
Memory Type	ddr5
Memory Speeds	6666
SATA Connectors	6x sata 6g
Wireless Standard	ax
Wireless Networking Standard	wi-fi 6e
Wireless Connectivity	bluetooth, wi-fi
USB Ports	6 x usb-a 3.2, 1 x usb-c 3.2, 4 x usb-a 2.0
Audio Ports	1x front audio (jaud)
Audio Channels	8
M.2 Slots	5

Weight and Dimensions

Width	243.84 millimeters
