23
Overview of Components
30º30º
M2_2 ~5 slots installation

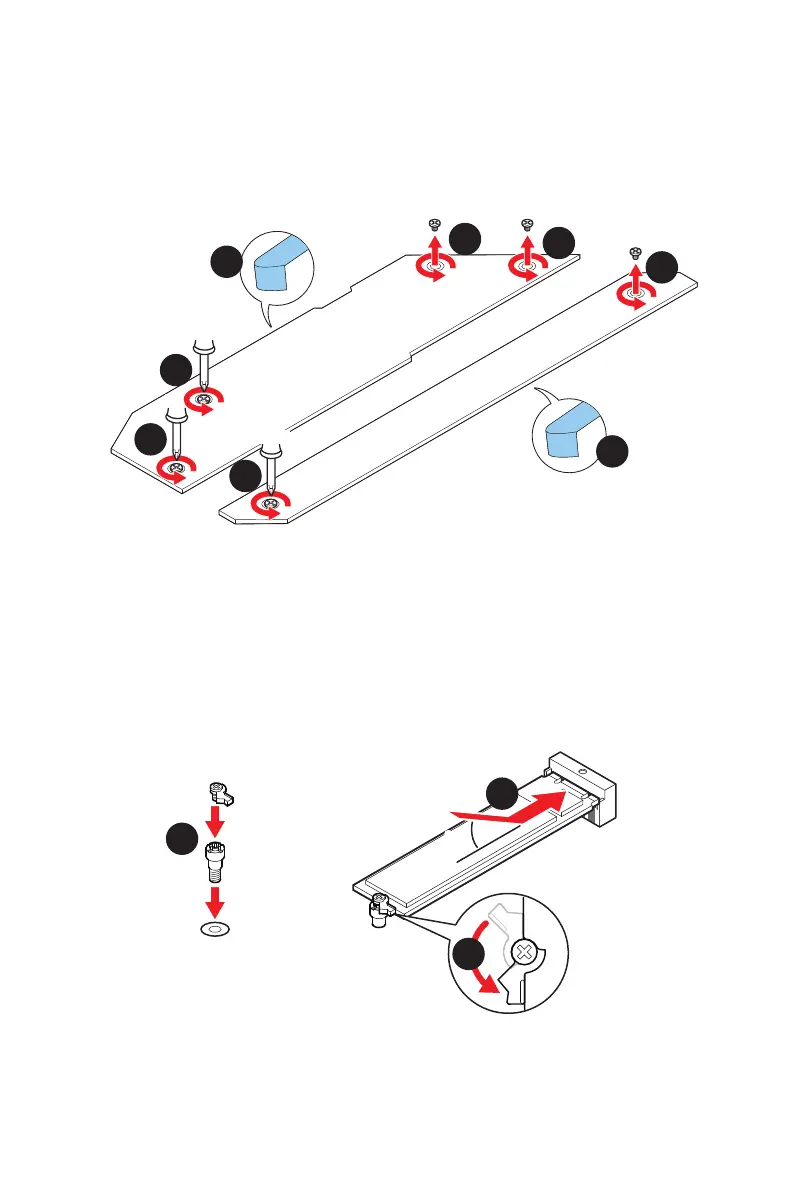

1. Loosen the screws of M.2 SHIELD FROZR heatsink.
2. Remove the M.2 SHIELD FROZR and remove the protective films from the thermal
pads.
2
2
1
1
1
1
1
1
M2_2
M2_3
M2_5
M2_4
3. If there is no EZ M.2 Clip installed, please install the supplied EZ M.2 Clip kit in the
M.2 slot according to your SSD length.
4.
5. Rotate the EZ M.2 Clip to fix the M.2 SSD.
5
4
3
To Next Page
