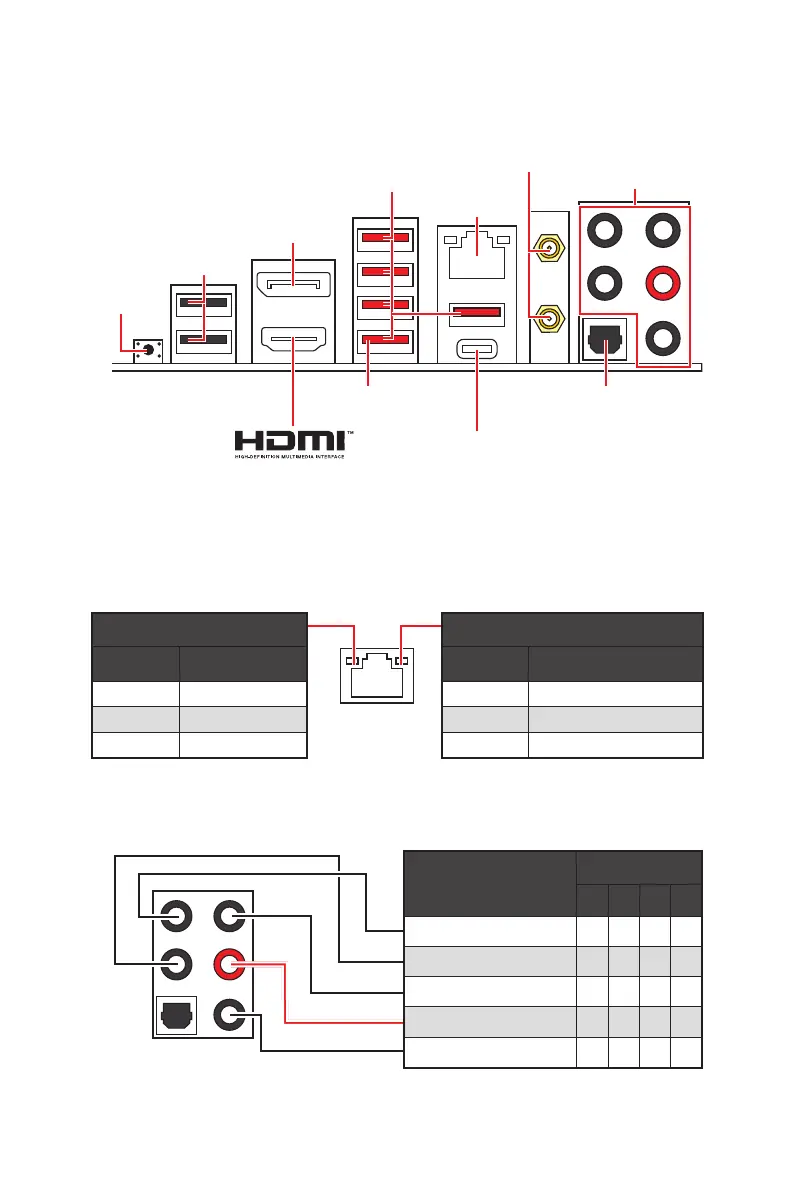

Rear I/O Panel

Audio Ports Configuration

Audio Ports

Channel

2 4 6 8

Center/ Sub-woofer Out  

Rear Speaker Out   

Line-In/ Side Speaker Out 

Line-Out/ Front Speaker Out    

Mic In

Blank: empty)

LAN Port LED Status Table

Link/ Activity LED

Status Description

Off No link

Yellow Linked

Blinking Data activity

Speed LED

Status Description

Off 10 Mbps connection

Green 100/1000 Mbps connection

Orange 2.5 Gbps connection

∙ Flash BIOS Port/ Button - Please refer to page 50 for Updating BIOS with Flash BIOS

Button.

2.5 Gbps LAN

Audio Ports

Optical

S/PDIF-Out

DisplayPort

Wi-Fi Antenna

connectors

USB 3.2 Gen 2

10Gbps Type-A

Flash BIOS

Button

Flash BIOS Port

USB 2.0

USB 3.2 Gen 2x2

20Gbps Type-C
