MSI MPG Z690 EDGE WIFI User Manual

37
Overview of Components
24
131
12

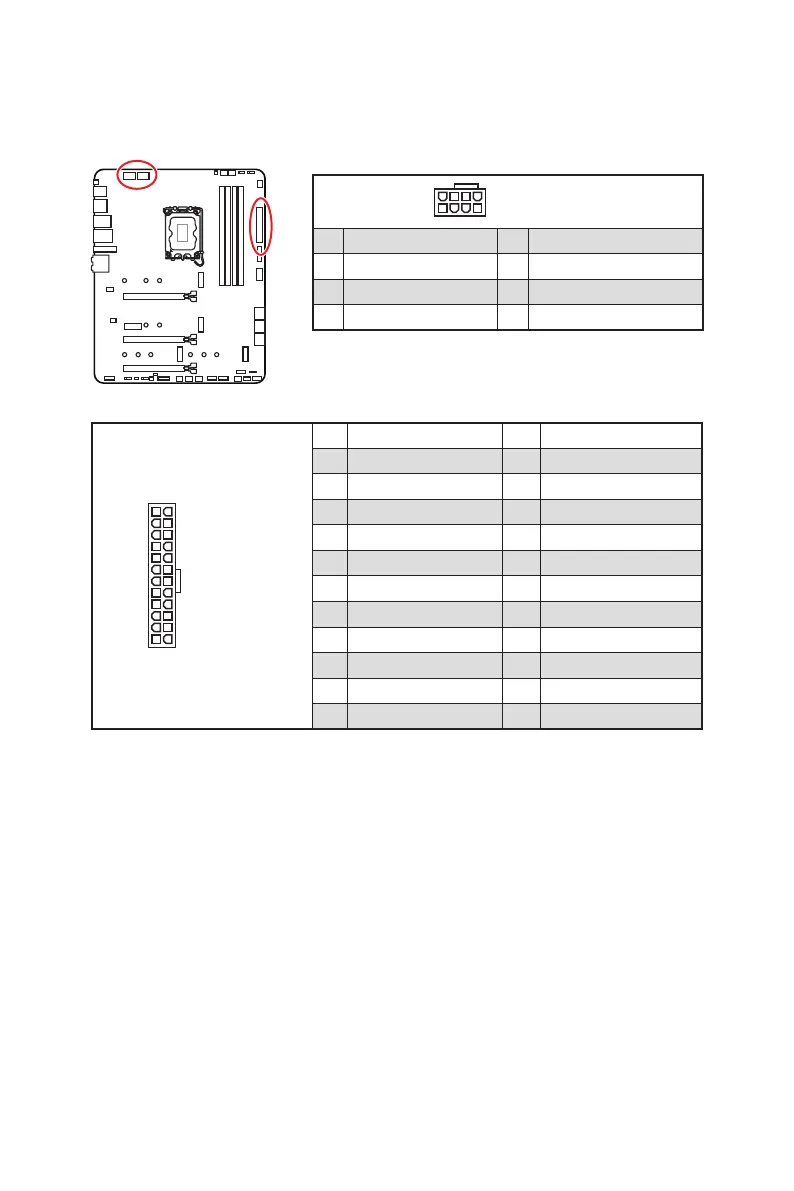

ATX_PWR1
1 +3.3V 13 +3.3V
2 +3.3V 14 -12V
3 Ground 15 Ground
4 +5V 16 PS-ON#
5 Ground 17 Ground
6 +5V 18 Ground
7 Ground 19 Ground
8 PWR OK 20 Res
9 5VSB 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
12 +3.3V 24 Ground
5
4 1
8
CPU_PWR1~2
1 Ground 5 +12V
2 Ground 6 +12V
3 Ground 7 +12V
4 Ground 8 +12V
⚠
Important
Make sure that all the power cables are securely connected to a proper ATX power
supply to ensure stable operation of the motherboard.
CPU_PWR1~2, ATX_PWR1: Power Connectors
These connectors allow you to connect an ATX power supply.

MSI MPG Z690 EDGE WIFI Specifications

General

Chipset	Intel Z690
CPU Socket	LGA 1700
Memory Support	DDR5
Maximum Memory	128 GB
Form Factor	ATX
Wi-Fi	Wi-Fi 6E
Memory Slots	4
PCIe 5.0 x16 Slots	1
PCIe 4.0 x16 Slots	1
M.2 Slots	4
SATA Ports	6
Ethernet	2.5G LAN
Bluetooth	Bluetooth 5.2
Audio	Realtek ALC4080
Memory Speed	Up to 6666+ MHz (OC)
PCIe x16 Slots	3
PCIe x1 Slots	2
USB 3.2 Gen 1 Ports	4
USB 3.2 Gen 2 Ports	2
