Overview of Components

+5V

⚠

CAUTION

Do not connect the wrong type of LED strips. The JRGB connector and the JRAINBOW

connector provide different voltages, and connecting the 5V LED strip to the JRGB

connector will result in damage to the LED strip.

⚠

Important

∙

The JRAINBOW connector supports up to 75 LEDs WS2812B Individually

Addressable RGB LED strips (5V/Data/Ground) with the maximum power rating of 3A

(5V). In the case of 20% brightness, the connector supports up to 200 LEDs.

∙

Always turn off the power supply and unplug the power cord from the power outlet

before installing or removing the RGB LED strip.

∙

Please use MSI’s software to control the extended LED strip.

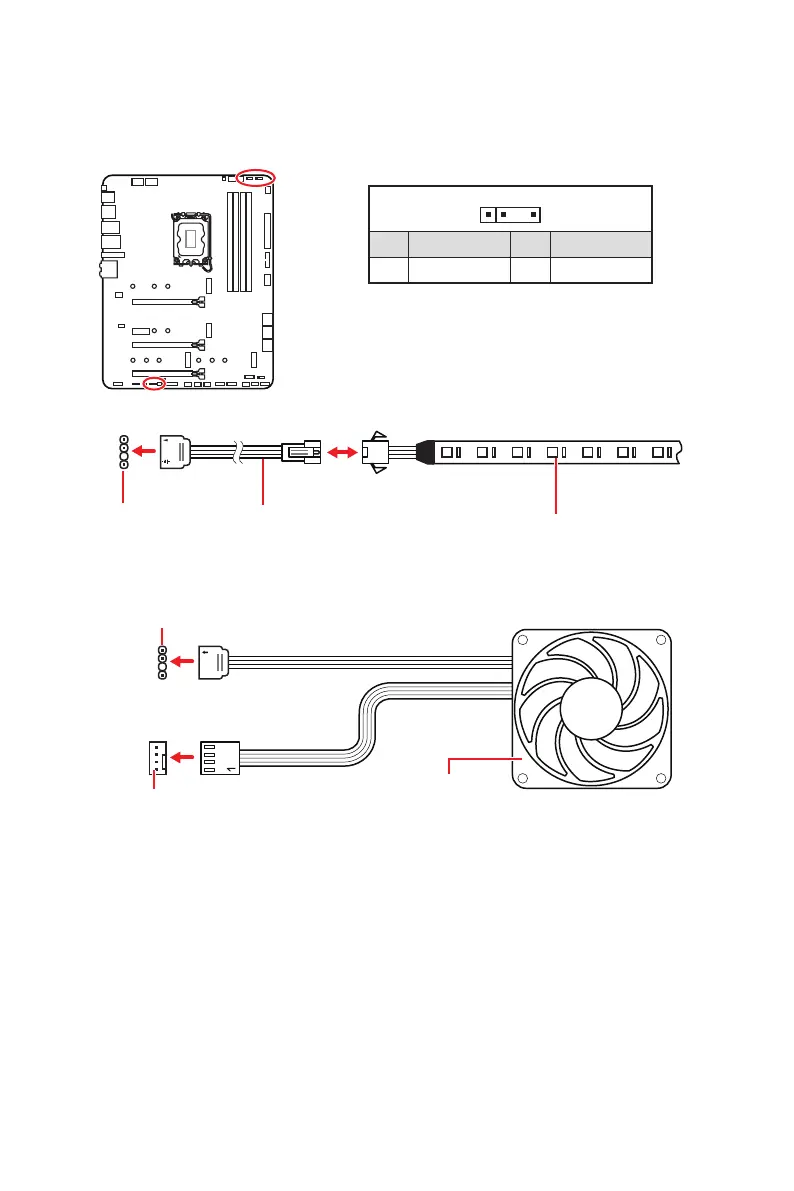

JRAINBOW1~3: Addressable RGB LED connectors

The JRAINBOW connectors allow you to connect the WS2812B Individually

Addressable RGB LED strips 5V.

JRAINBOW

connector

JRAINBOW connector

System Fan connector

JRAINBOW

extension cable

WS2812B Individually

Addressable RGB LED strips 5V

1 +5V 2 Data

3 No Pin 4 Ground

Addressable RGB LED Strip Connection

Addressable RGB LED Fan Connection

Addressable RGB LED Fan
