Overview of Components

⚠

Important

∙

The JRGB connector supports up to 2 meters continuous 5050 RGB LED strips

(12V/G/R/B) with the maximum power rating of 3A (12V).

∙

Always turn off the power supply and unplug the power cord from the power outlet

before installing or removing the RGB LED strip.

∙

Please use MSI’s software to control the extended LED strip.

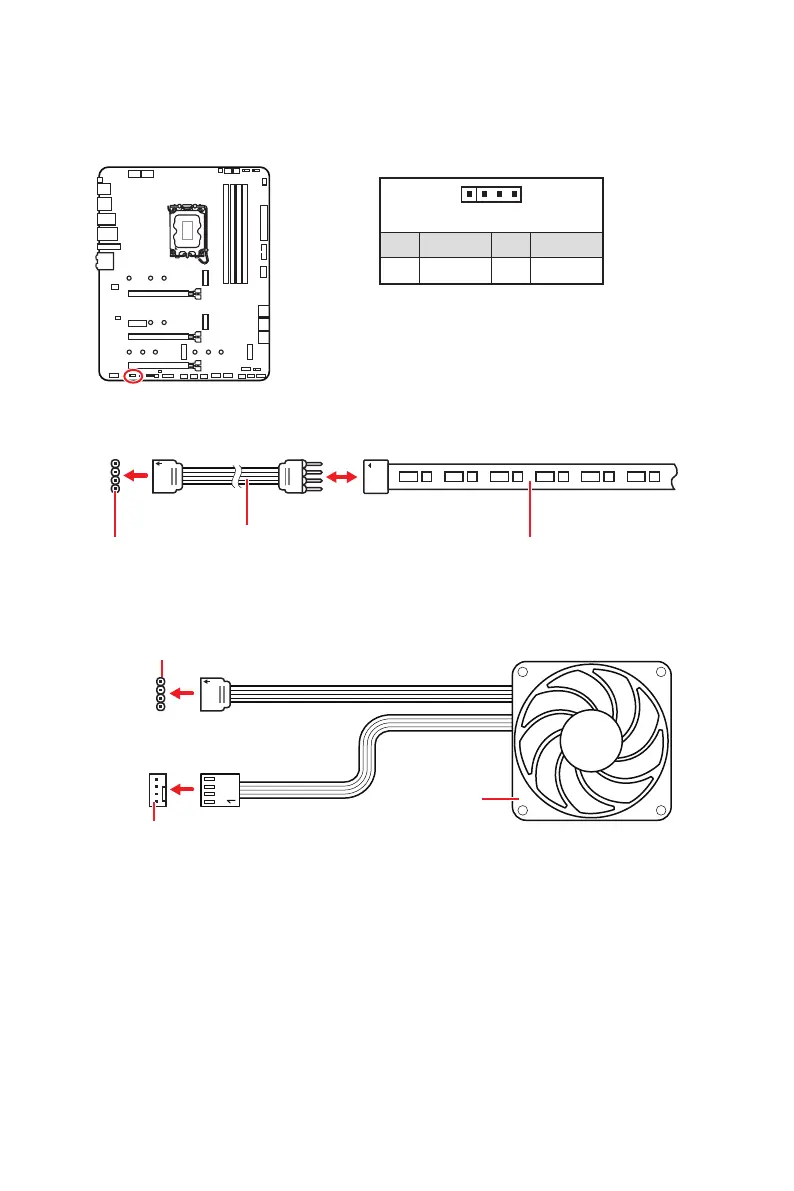

JRGB1: RGB LED connector

The JRGB connector allows you to connect the 5050 RGB LED strips 12V.

JRGB

connector

JRGB extension

cable

5050 RGB LED strips 12V

1 +12V 2 G

3 R 4 B

RGB LED Strip Connection

JRGB connector

System Fan connector

RGB LED Fan Connection

RGB LED Fan
